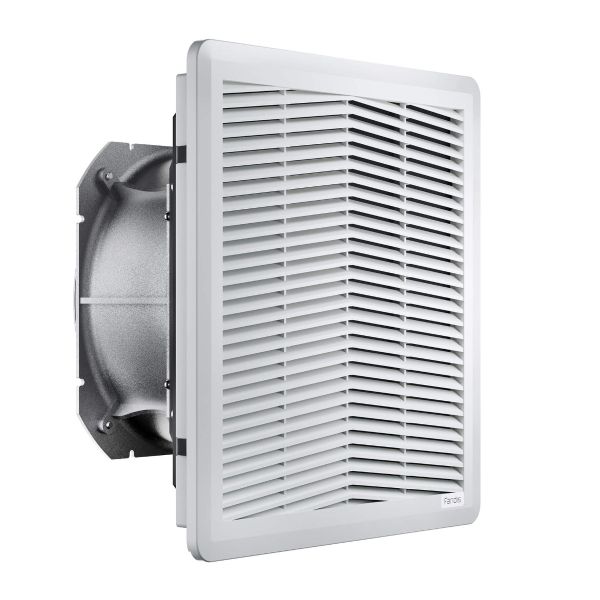

FF20A230UE Fandis Filter Fan Unit 230V AC 457m³/h Standard Airflow. Fits Cut Out 291x291mm. RAL 7035

FF20A230UE Fandis Filter Fan Unit 230V AC 457m³/h Standard Airflow. Fits Cut Out 291x291mm. RAL 7035

SKU
FF20A230UE
Buy 4 for £198.48 each and save 5%
View Downloads
SKU FF20A230UE
Manufacturer FANDISEU
Voltage 230V.a.c
Cut Out Size 291x291mm
EMC Shielded No
Airflow Range (50Hz) 250 to 500m³/h
Max Air Flow (50Hz) 457(m³/h)
Airflow Direction Standard (Suck In)

Description

Specially designed for electronic cooling inside control panels and enclosures, the FF range of filter fan units feature a screwless connection with a fast tool-free mounting system. Available in a wide range of configurations for both indoor and outdoor use.



Technical data


  • Airflow with Exhaust Filter 325/360 m³/h
  • Rated Current 0.343/0.418 A
  • Operating Voltage 207-253 V a.c.
  • Frequency 50/60 Hz
  • Appliance Class I
  • Motor Protection Thermally Protected
  • Mounting Wall Thickness 1.3-3.7 mm
  • Spare Parts Filter Media M20FPF-EU3
  • Casing Material PC/ABS UL94 V-0
  • RAL Number 7035
  • Airflow Direction Direct
  • Electrical Connection Screwless Terminal Block
  • Life Expectancy 63000/70000 h at 40 °C
  • Wires Section 0.75-2.5 mm²
  • Wires Section 20-14 AWG
  • Fan Noise 65/68 dB(A)
  • Filter Class G3 EN 779
  • Filter Class ISO coarse 55% ISO 16890
  • Filter Material thermo-linked progressive structure synthetic fibre
  • IP Protection Degree IP54
  • Operating Temperature -25÷60 °C
  • Storage Temperature -30÷70 °C


  • Dimensions of FF20A230UE:

    Standard Filter Fan Size: 325mm (w) x 325mm (h) x 151mm (d)



    Rated Voltage 230Va.c
    Rated Power (50/60Hz) 79/96
    Max Air Flow (m3/h) 457/505
    Static Pressure (50/60Hz) 136/148
    Noise (50/60Hz) (dB(A)) 65/68





    EMC versions are available on request.
