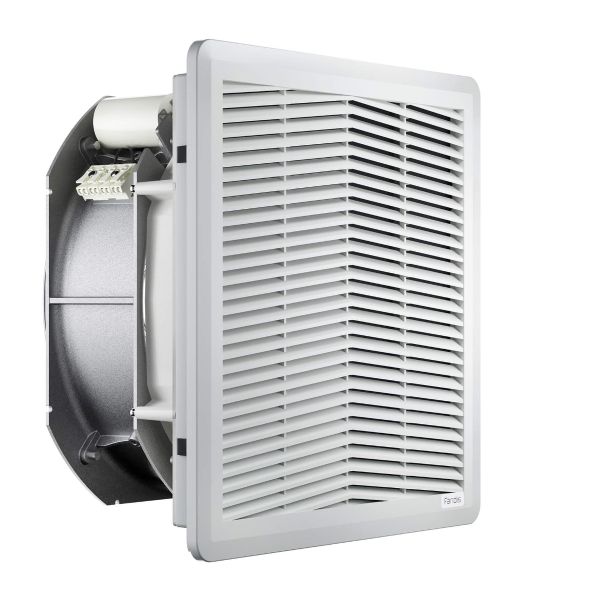

FF20GA230UE Fandis Filter Fan Unit 230V AC 705m³/h Standard Airflow. Fits Cut Out 291x291mm. RAL 7035

Name: FF20GA230UE Fandis Filter Fan Unit 230V AC 705m³/h Standard Airflow. Fits Cut Out 291x291mm. RAL 7035
SKU: FF20GA230UE
Price: 290.62 GBP
Availability: InStock

SKU

FF20GA230UE

Buy 4 for £276.09 each and save 5%

£290.62

Quantity

In Stock

View Downloads

SKU	FF20GA230UE
Manufacturer	FANDISEU
Rated Voltage	230V.a.c
Cut Out Size	291x291mm
EMC Shielded	No
Airflow Range (50Hz)	>501m³/h
Max Air Flow (50Hz)	705(m³/h)
Airflow Direction	Standard (Suck In)

Description

Specially designed for electronic cooling inside control panels and enclosures, the FF range of filter fan units feature a screwless connection with a fast tool-free mounting system. Available in a wide range of configurations for both indoor and outdoor use.

Technical data

Airflow with Exhaust Filter 510/560 m³/h

Rated Current 0.67/0.84 A

Operating Voltage 207-253 V a.c.

Frequency 50/60 Hz

Appliance Class I

Motor Protection Thermally Protected

Mounting Wall Thickness 1.3-3.7 mm

Spare Parts Filter Media M20FPF-EU3

Casing Material PC/ABS UL94 V-0

RAL Number 7035

Airflow Direction Direct

Electrical Connection Screwless Terminal Block

Life Expectancy 57500/70000 h at 25 °C

Wires Section 20-14 AWG

Wires Section 0.75-2.5 mm²

Fan Noise 72.8/75.8 dB(A)

Filter Class ISO coarse 55% ISO 16890

Filter Class G3 EN 779

Filter Material thermo-linked progressive structure synthetic fibre

IP Protection Degree IP54

Operating Temperature -25÷60 °C

Storage Temperature -30÷70 °C

Dimensions of FF20GA230UE:

Standard Filter Fan Size: 325mm (w) x 325mm (h) x 149mm (d)

Rated Voltage	230Va.c
Rated Power (50/60Hz)	155/194
Max Air Flow (m3/h)	705/795
Static Pressure (50/60Hz)	200/205
Noise (50/60Hz) (dB(A))	72.8/75.8
