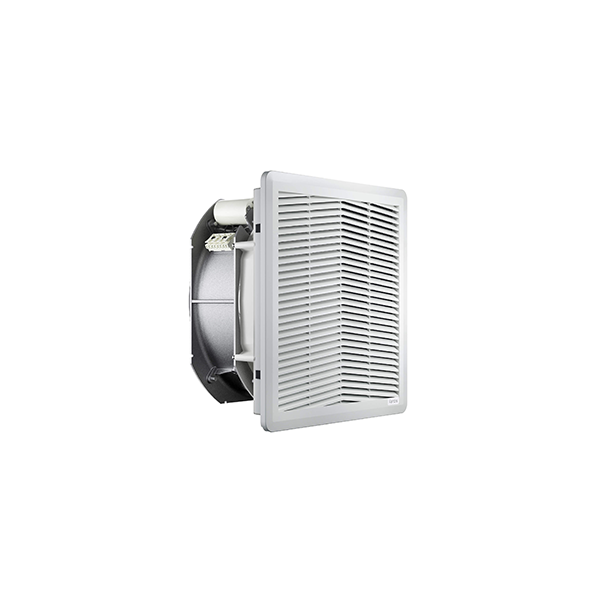

FF20GA115UE Fandis Filter Fan Unit 115V AC 710m³/h Standard Airflow. Fits Cut Out 291X291mm. RAL 7035

FF20GA115UE Fandis Filter Fan Unit 115V AC 710m³/h Standard Airflow. Fits Cut Out 291X291mm. RAL 7035

SKU
FF20GA115UE
Buy 4 for £329.22 each and save 5%
In Stock
View Downloads
SKU FF20GA115UE
Manufacturer FANDISEU
Voltage 115V a.c.
Cut Out Size 291x291mm
EMC Shielded No
Airflow Range (50Hz) >501m³/h
Max Air Flow (50Hz) 710(m³/h)
Airflow Direction Standard (Suck In)

Description

Specially designed for electronic cooling inside control panels and enclosures, the FF range of filter fan units feature a screwless connection with a fast tool-free mounting system. Available in a wide range of configurations for both indoor and outdoor use.



Technical data


  • Airflow with Exhaust Filter 505/540 m³/h
  • Operating Voltage 103.5-126.5 V a.c.
  • Frequency 50/60 Hz
  • Appliance Class I
  • Motor Protection Thermally Protected
  • Mounting Wall Thickness 1.3-3.7 mm
  • Spare Parts Filter Media M20FPF-EU3RM
  • Casing Material PC/ABS UL94 V-0
  • RAL Number 7035
  • Airflow Direction Standard
  • Electrical Connection Screwless Terminal Block
  • Life Expectancy 53000/78000 h at 25 °C
  • Wires Section 20-14 AWG
  • Wires Section 0.75-2.5 mm²
  • Fan Noise 74.7/78.9 dB(A)
  • Filter Class ISO coarse 55% ISO 16890
  • Filter Class G3 EN 779
  • Filter Material thermo-linked progressive structure synthetic fibre
  • IP Protection Degree IP54
  • Operating Temperature -25÷60 °C
  • Storage Temperature -30÷70 °C


  • Dimensions of FF20GA115UE:

    Standard Filter Fan Size: 325mm (w) x 325mm (h) x 149mm (d)



    Rated Voltage 115Va.c
    Rated Power (50/60Hz) 143/177
    Max Air Flow (m3/h) 710/775
    Static Pressure (50/60Hz) 190/180
    Noise (50/60Hz) (dB(A)) 74.7/78.9





    EMC versions are available on request.
