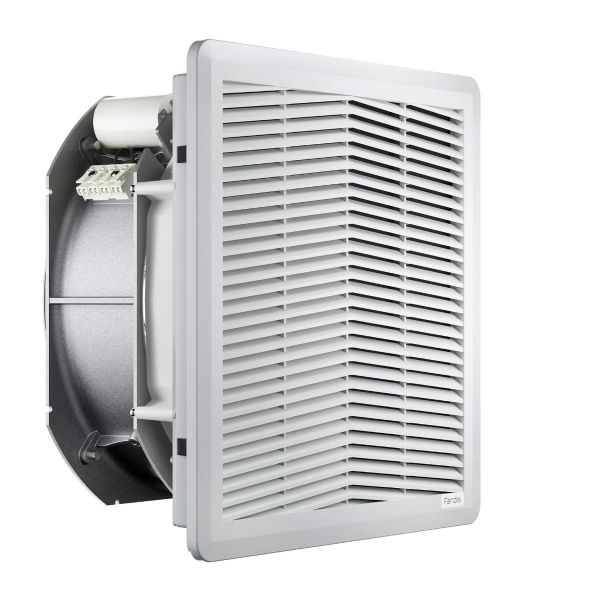

FF20GA115UER Fandis Filter Fan Unit 115V AC 765m³/h Reverse Airflow. Fits Cut Out 291x291mm. RAL 7035

The Fandis FF20GA115UER is a 115V AC filter fan unit designed to protect electronic components by delivering up to 765m³/h of airflow (at 50Hz) to electrical control panels, cabinets and enclosures.

Designed for easy installation, it features a screwless electrical connection and a fast, tool-free mounting system, with a panel cut-out size of 291x291mm. The Fandis FF filter fan series offers a wide range of configurations for indoor and outdoor applications.

Technical data

• Airflow with Exhaust Filter 510/545 m³/h
• Operating Voltage 103.5-126.5 V a.c.
• Frequency 50/60 Hz
• Appliance Class I
• Motor Protection Thermally Protected
• Mounting Wall Thickness 1.3-3.7 mm
• Spare Parts Filter Media M20FPF-EU3RM
• Casing Material PC/ABS UL94 V-0
• RAL Number 7035
• Airflow Direction Reverse
• Electrical Connection Screwless Terminal Block
• Life Expectancy 53000/78000 h at 25 °C
• Wires Section 20-14 AWG
• Wires Section 0.75-2.5 mm²
• Fan Noise 74.7/78.9 dB(A)
• Filter Class ISO coarse 55% ISO 16890
• Filter Class G3 EN 779
• Filter Material thermo-linked progressive structure synthetic fibre
• IP Protection Degree IP55
• Operating Temperature -30÷60 °C
• Storage Temperature -30÷70 °C

Dimensions of the Fandis FF20GA115UER: 325mm (w) x 325mm (h) x 149mm (d)

EMC versions are available on request.
