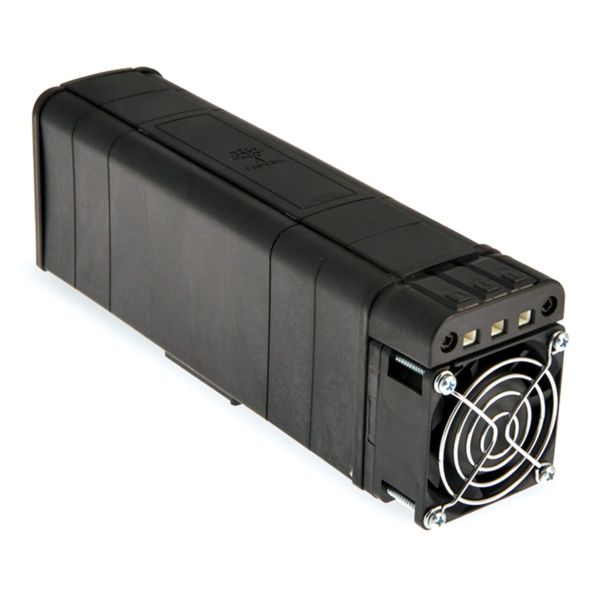

HVPS250THP-230 250W Plastic Ventilated Heater 230V AC

The Fandis HVPS250THP-230 is a compact DIN rail mounted enclosure heater designed to prevent condensation and corrosion by maintaining reliable operating temperatures within electrical cabinets and control panels. These H series PTC heaters with built-in fan ensure quick distribution of heat and are available in metal or plastic, with low surface thermal conductivity.

Key Features of the HVPS250THP-230:

• Heating Power: 250 W
• Rated Voltage: 230 V a.c.
• Operating Voltage: 150-250 V a.c.
• Frequency: 50/60 Hz
• Max Current: 4.9 A
• Appliance Class: I
• Casing Material: Black PET UL94 V-0
• Electrical Connection: Terminal Block
• Wires Section: 20-16 AWG
• Wires Section: 1-2.5 mm²
• Fixing System: DIN rail
• IP Protection Degree: IP20
• Operating Temperature: -10 to 40 °C
• Storage Temperature: -40 to 70 °C
• Dimensions (mm): 193x87.4x61.5

View the full range of Fandis enclosure heaters.

The formation of condensation is one of the biggest dangers for electrical enclosures and cabinets. Provided that they are working under load, their own heat prevents the condensing of fluids. If the process is switched off, the electronics cool down. This is precisely where the function of our control cabinet heaters begins to protect.

Our heaters are used in combination with an enclosure thermostat (Normally Closed) or cabinet hygrostat, predominantly for the avoidance of excessively low temperatures or excessively high humidity in the control cabinet and help to avoid the formation of corrosion.

Shop our range of normally closed thermostats, to detect when to turn on a heater within the enclosure, available for next working day delivery.
