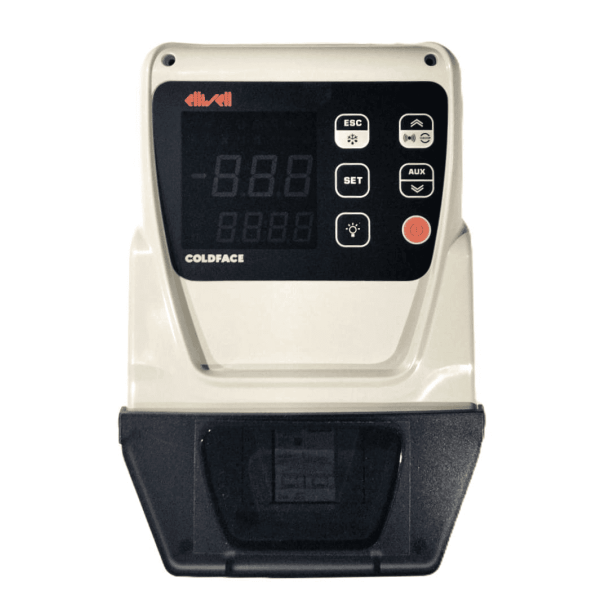

RCNA3UYRX2E700 Eliwell EWRC 500 NT Coldface Controller

The Eliwell RCNA3UYRX2E700 is part of the Coldface AIR series (EWRC 500 NT), a high-performance, all-in-one electronic control panel designed for managing both static and ventilated cold rooms.

Technical Specifications

• Operating Temperature: -5...50
• Storage Temperature: -20…60
• Ambient Humidity: 10…90% RH (non-condensing)
• Power Supply: 220/230 Vac
• Power Draw: 14W max
• Power Terminals: screw-type
• Display Range: NTC: -50,0…+110,0°C / PTC: -55,0…+150,0°
• N. Analogue Inputs: 3
• Analogue Inputs: 3x PTC or NTC
• N. Digital Inputs:
• Digital Inputs: 2x voltage-free
• N. Digital Outputs: 5
• Digital Outputs:

Common-line max 16A
1x 2HP 12(8)A 250Vac
1x 1HP 8(8)A 250Vac
1x 1/2HP 8(4)A 250Vac
1x 1HP 8(8)A 250Vac
1x SPDT 1/2HP NO 8(4)A, NC 6(3) A 250Vac

• Display: 2x LED 3 digits + Sign
• Resolution: 1 or 0,1°C
• Measurement Range: -55…+150°C
• Connectivity: TTL and RS485 port for HACCP Module (Eliwell AIR), Unicard, TelevisSystem and ModBus RTU systems
• N. Serial Ports: 1
• Serial Ports:

1x TTL
1x RS485 Optional

• Weight (g) Net: 1713
• Width (L) Net: 221
• Height (Ht) Net: 318
• Depth (P) Net: 107
• Weight (g) Packaging: 2015
• Width (L) Packaging: 321
• Height (Ht) Packaging: 217
• Depth (P) Packaging: 135
