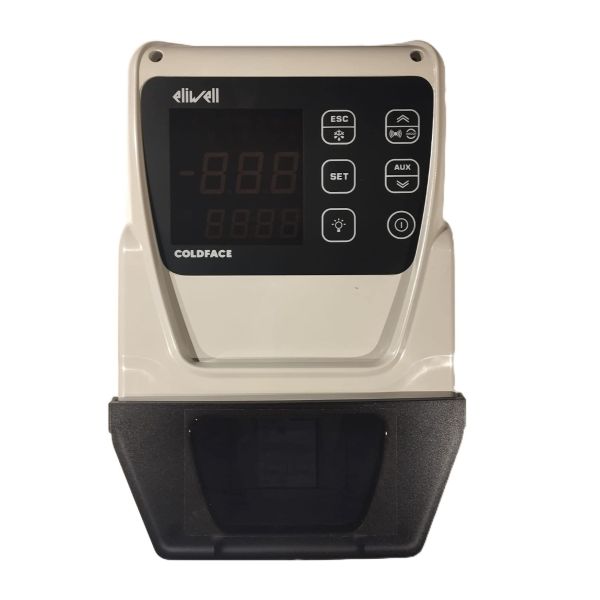

RCNA3UYRXE702 Eliwell EWRC 500 NT Coldface Controller

The Eliwell RCNA3UYRXE702 is part of the Coldface AIR series (EWRC 500 NT), a high-performance, all-in-one electronic control panel designed for managing both static and ventilated cold rooms.

Technical Specifications

• Power Supply: 230 Vac
• Dimensions: Approximately 213 x 318 x 102 mm
• IP rating: IP65
• Operating temperature -5...+50 °C
• Operating humidity 10...90 % RH (non condensing)
• Installation: Wall
• Display: 3 digits + sign and 4 digits
• Display range: NTC: -50...110 °C / PTC: -55...150 °C
• Resolution: 0.1 °C
• Analogue inputs: 3(2) x NTC / PTC
• Digital inputs: 2(3) voltage-free
• Digital outputs: (default config. *)Compressor - 12(12) A 2 HP 250 Vac SPS | Defrost 8(8) A 1 HP 250 Vac SPS | Evaporator fan 8(4) A ½ HP 250 Vac SPST |Light - 8(8) A 1 HP 250 Vac SPST |Alarm - 8(4) A ½ HP 250 Vac SPDT
• Connections Screw-type RTC Clock Optional HACCP Optional
• RTC Clock: Optional
• HACCP: Optional
• Connectivity: TTL serial port for HACCP Module and Unicard; RS485** port for Televis supervision system and Modbus RTU systems
