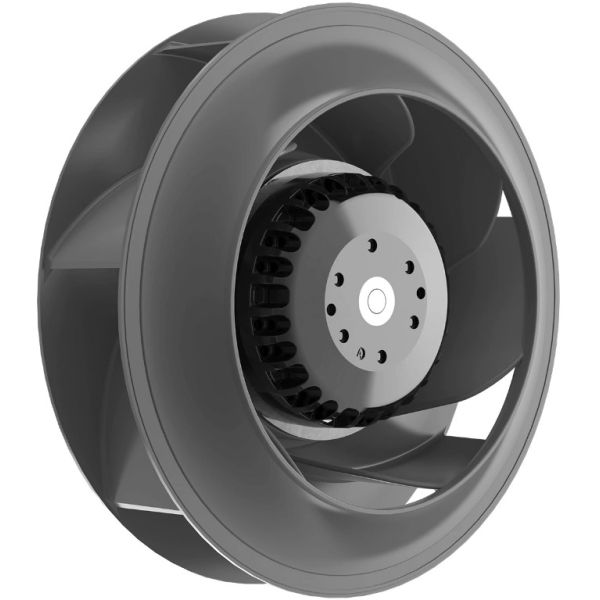

U24-A2 Ecofit 2RRE15 192x40R Backward Curved Centrifugal Fan & Capacitor

The U24-A2 Ecofit 2RRE15 192X40R is a high performance, backward curved centrifugal impeller designed for demanding ventilation and air conditioning applications. It maintains consistent, high pressure and airflow, even in the event of significant pressure drop, making it suitable for applications with heavy filtration or restricted space.

Key Features of the U24-A2 Ecofit 2RRE15 192X40R:

• Plastic impeller: Material PP-T20
• Black painted external rotor motor
• Compact design ideal for confined spaces
• Motor's protection T150° C Automatic reset
• With condensat drain holes
• IP44 protection
• Balance level: G2.5
• Class F
• Ball bearing

Key Features of the Cefem Power PE 200 PL V FS40:

• Rated voltage: From 250VAC up to 550VAC
• Self-Healing Dielectric: Metallised polypropylene (MKP)
• Housing: Self-extinguishing plastic in PC-ABS UL 94 V0
• Sealing: Polyurethane resin
• Tolerance: ± 2, ± 5, ± 10 % Asymmetrical upon request
• Operating temperature: -40° to +85°C - -40°C à +85°C
• Diameter (mm): 21
• Length (mm): 49
• Cable length: Approximately 30cm

View the full range of Ecofit centrifugal fans, available to buy online. Contact us for more information or if you require a specific model not listed online.
