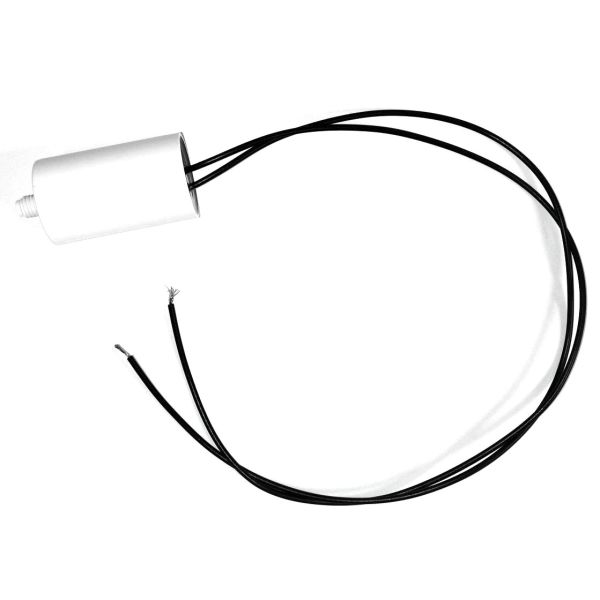

200 P-C-S Cefem Power PE200 PL V FS40 Capacitor 2µF

The Cefem Power PE 200 PL V FS40 is a high-performance metallised polypropylene capacitor designed for maximum reliability in motor and power applications. It is suitable for use with the following Ecofit forward curved centrifugal fan models; N05-48 2 GRE 15 140x59R, D25-A5 2 GRE A3 120x62R and N05-62 4 GRE 25 160x62R.

Technical Specifications:

• Rated voltage: From 250VAC up to 550VAC
• Self-Healing Dielectric: Metallised polypropylene (MKP)
• Housing: Self-extinguishing plastic in PC-ABS UL 94 V0
• Sealing: Polyurethane resin
• Tolerance: ± 2, ± 5, ± 10 % Asymmetrical upon request
• Operating temperature: -40° to +85°C
• Diameter (mm): 21
• Length (mm): 49
• Cable length: Approximately 30cm
