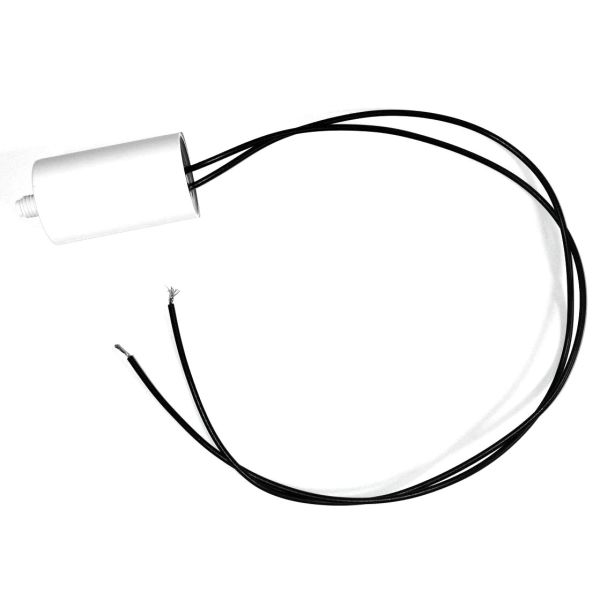

300 P-S-C Cefem Power PE300 PL V FS40 Capacitor 3µF

The Cefem Power PE 300 PL V FS40 is a high-performance metallised polypropylene capacitor designed for maximum reliability in motor and power applications. It is suitable for use with the Ecofit U24-C6 2RRE25 220X43R backward curved centrifugal fan.

Technical Specifications:

• Rated voltage: From 250VAC up to 550VAC
• Self-Healing Dielectric: Metallised polypropylene (MKP)
• Housing: Self-extinguishing plastic in PC-ABS UL 94 V0
• Sealing: Polyurethane resin
• Tolerance: ± 2, ± 5, ± 10 % Asymmetrical upon request
• Operating temperature: -40° to +85°C
• Diameter (mm): 25
• Length (mm): 49
• Cable length: Approximately 30cm

View the full range of Cefem Power fan capacitors.
