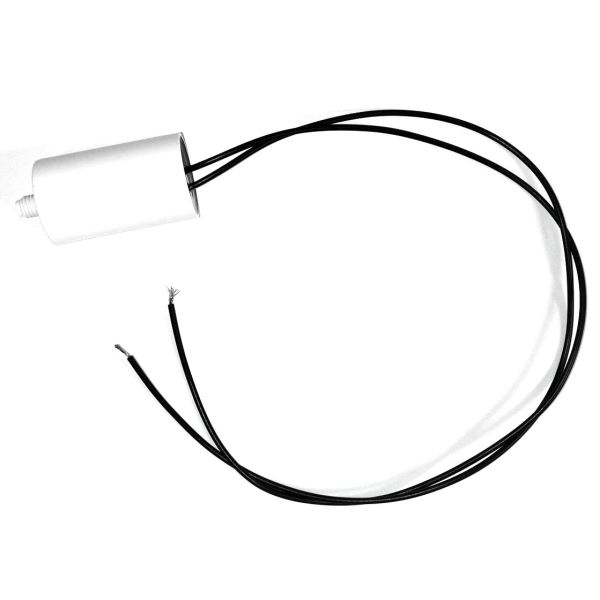

PE600 PL V FS40 Cefem Power Capacitor 6µF 600 P-S-C

The Cefem Power PE 600 PL V FS40 is a high-performance metallised polypropylene capacitor designed for maximum reliability in motor and power applications. It is suitable for use with the following Ecofit centrifugal fan models; N11-02 2GDR 45 146X180L, Y45-03 2GRF65 180X52R and L47-A3 2RRE45 250x50R.

Technical Specifications:

• Rated voltage: From 250VAC up to 550VAC
• Self-Healing Dielectric: Metallised polypropylene (MKP)
• Housing: Self-extinguishing plastic in PC-ABS UL 94 V0
• Sealing: Polyurethane resin
• Tolerance: ± 2, ± 5, ± 10 % Asymmetrical upon request
• Operating temperature: -40° to +85°C
• Diameter (mm): 30
• Length (mm): 49
• Cable length: Approximately 30cm

View the full range of Cefem Power fan capacitors, available to buy online in the following models:

• PE 200 PL V FS40
• PE 250 PL V FS40
• PE 300 PL V FS40
• PE 350 PL V FS40
• PE 400 PL V FS40
• PE 500 PL V FS40
• PE 800 PL V FS40
