L47-A3 Ecofit 2RRE45 250x50R Backward Curved Centrifugal Fan & Capacitor

The L47-A3 Ecofit 2RRE45 250x50R is a high performance, backward curved centrifugal impeller designed for demanding ventilation and air conditioning applications. It maintains consistent, high pressure and airflow, even in the event of significant pressure drop, making it suitable for applications with heavy filtration or restricted space. The L47-A3 Ecofit 2RRE45 250x50R centrifugal fan is supplied with the Cefem Power PE 600 PL V FS40 capacitor to ensure optimal starting torque and efficiency.

Key Features of the L47-A3 Ecofit 2RRE45 250x50R:

• Galvanised steel impeller
• Black painted external rotor motor
• Compact design ideal for confined spaces
• IP44 protection
• Balance level: G2.5
• Class F
• Ball bearing

Key Features of the Cefem Power PE 600 PL V FS40:

• Rated voltage: From 250VAC up to 550VAC
• Self-Healing Dielectric: Metallised polypropylene (MKP)
• Housing: Self-extinguishing plastic in PC-ABS UL 94 V0
• Sealing: Polyurethane resin
• Tolerance: ± 2, ± 5, ± 10 % Asymmetrical upon request
• Operating temperature: -40° to +85°C
• Diameter (mm): 30
• Length (mm): 49
• Cable length: Approximately 30cm

View the full range of Ecofit centrifugal fans, available to buy online. Contact us for more information or if you require a specific model not listed online.

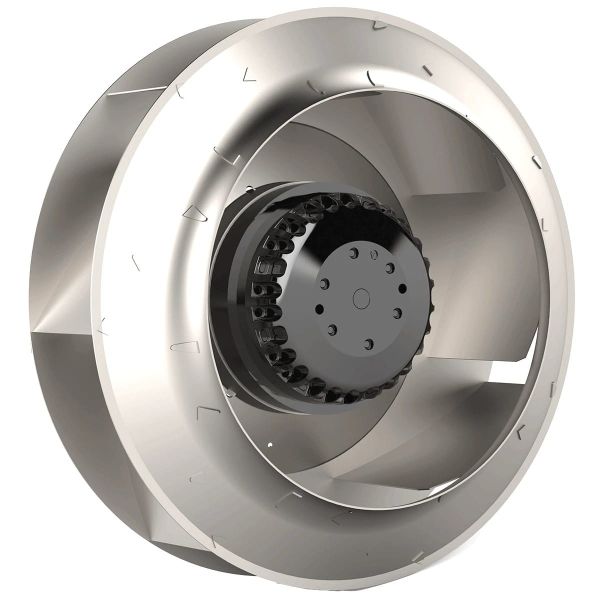

*Please note, the product photo may not be an exact reprensentation of this model but illustrates the backward curved series.
