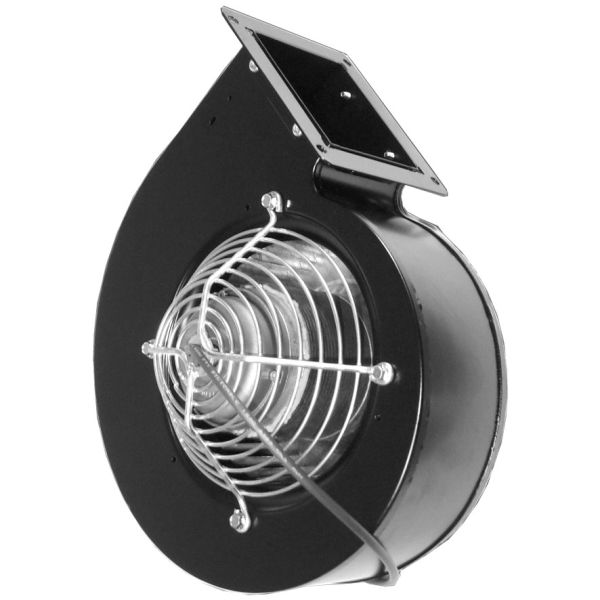

Y45-03 Ecofit 2GRF65 180X52R Single Inlet Centrifugal Fan & Capacitor

The Y45-03 Ecofit 2GRF65 180X52R is a high performance single inlet forward curved centrifugal fan specifically designed for slightly higher-pressure development. Featuring innovative double shaft mounting with guard supported resilient bearing mount and fixed discharge flange. The Y45-03 Ecofit 2GRF65 180X52R centrifugal fan is supplied with the Cefem Power PE 600 PL V FS40 capacitor to ensure optimal starting torque and efficiency.

Key Features of the Y45-03 Ecofit 2GRF65 180X52R:

• Galvanised scroll & flange
• Galvanised steel forward curved impellers
• Single phase (1~) external rotor motor
• Compact design ideal for confined spaces
• IP54 protection
• Balance level: G2.5
• Weight: 6.3 kg
• Class F
• Ball bearing


Key Features of the Cefem Power PE 600 PL V FS40:

• Rated voltage: From 250VAC up to 550VAC
• Self-Healing Dielectric: Metallised polypropylene (MKP)
• Housing: Self-extinguishing plastic in PC-ABS UL 94 V0
• Sealing: Polyurethane resin
• Tolerance: ± 2, ± 5, ± 10 % Asymmetrical upon request
• Operating temperature: -40° to +85°C
• Diameter (mm): 30
• Length (mm): 49
• Cable length: Approximately 30cm

View the full range of Ecofit centrifugal fans, available to buy online. Contact us for more information or if you require a specific model not listed online.
