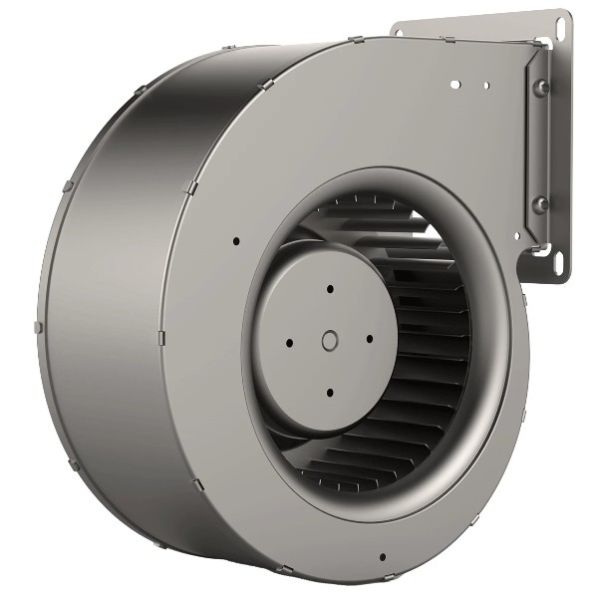

L02-A1 Ecofit GREG9 160X62R Single Inlet Centrifugal Fan

The Ecofit L02-A1 GREG9 single-inlet forward curved centrifugal fan is designed for applications requiring, compact, high-pressure, and high-efficiency airflow. Typical applications include HVAC systems, heat recovery units, fan coil units, air handling units, ventilation in electronic enclosures, air curtains, and fume extraction.

Key Features:

• Galvanised scroll housing & flange
• Galvanised steel forward curved impellers
• Black painted external rotor motor
• Motor electronically protected, single phase (1~)
• High pressure performance
• ERP compliant
• IP rating IP44
• Compact design ideal for confined spaces
• Operating temperature : -20°C min 50°C max
• Weight: 2.7 Kg
• Balancing: G2.5
• Class F winding

View the full range of Ecofit centrifugal fans, available to buy online. Contact us for more information or if you require a specific model not listed online.
