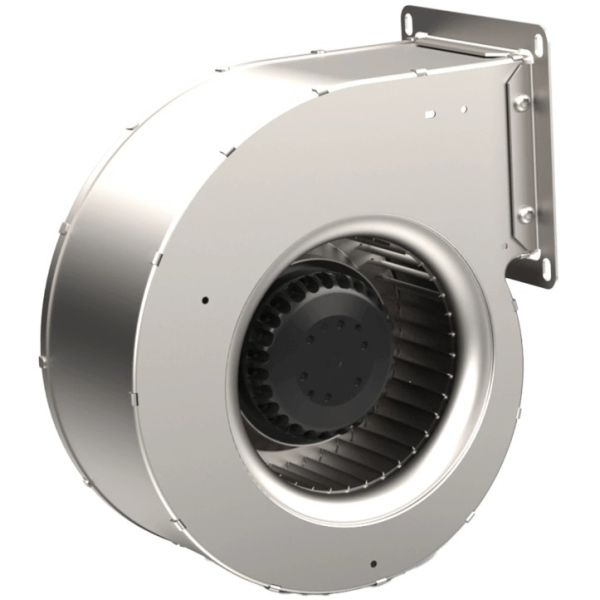

N05-48 Ecofit 2GRE15 140X59R Single Inlet Centrifugal Fan & Capacitor

The N05-48 Ecofit 2GRE15 140X59R is a high performance single inlet forward curved centrifugal fan specifically designed for applications requiring high pressure, such as, air filtration, where constant volume must be maintained even as filter resistance increases. The N05-48 Ecofit 2GRE15 140X59R centrifugal fan is supplied with the Cefem Power PE 200 PL V FS40 capacitor to ensure optimal starting torque and efficiency.

Key Features of the N05-48 Ecofit 2GRE15 140X59R:

• Galvanised scroll & flange
• Galvanised steel forward curved impellers
• Black painted external rotor motor
• Compact design ideal for confined spaces
• IP44 protection
• Balance level: G2.5
• Weight: 2.5 kg
• Class F
• Bearing type: ball bearing


Key Features of the Cefem Power PE 200 PL V FS40:

• Rated voltage: From 250VAC up to 550VAC
• Self-Healing Dielectric: Metallised polypropylene (MKP)
• Housing: Self-extinguishing plastic in PC-ABS UL 94 V0
• Sealing: Polyurethane resin
• Tolerance: ± 2, ± 5, ± 10 % Asymmetrical upon request
• Operating temperature: -40° to +85°C - -40°C à +85°C
• Diameter (mm): 21
• Length (mm): 49
• Cable length: Approximately 30cm

View the full range of Ecofit centrifugal fans, available to buy online. Contact us for more information or if you require a specific model not listed online.
