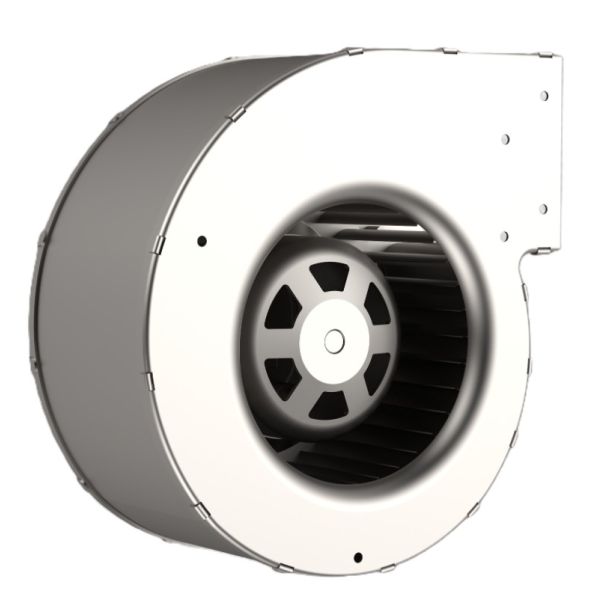

V01-A1 Ecofit GREF5 120X62R Single Inlet Centrifugal Fan

The Ecofit V01-A1 GREF5 120x62r is a high performance single inlet forward curved centrifugal fan specifically designed for applications requiring high pressure, such as, air filtration, where constant volume must be maintained even as filter resistance increases.

Key Features:

• Galvanised steel forward curved impellers and scroll housing
• High pressure performance with constant volume flow
• Electronically protected external rotor motor single phase (1~)
• ERP compliant
• IP rating IP54
• Compact design ideal for confined spaces
• Operating temperature : -20°C min 60°C max
• Weight: 1.80 Kg
• Balancing: G2.5

View the full range of Ecofit centrifugal fans, available to buy online. Contact us for more information or if you require a specific model not listed online.
