N11-02 Ecofit 2GDR45 146x180L Double Inlet Centrifugal Fan & Capacitor

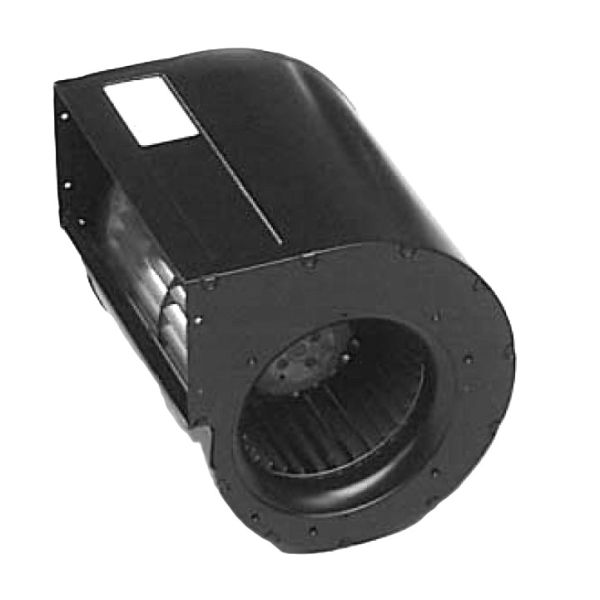

The N11-02 Ecofit 2GDR45 146x180L 04S double inlet centrifugal fan, is a compact, durable unit, ideal for applications requiring high airflow in restricted areas, such as HVAC, air curtains, or industrial cooling. The N11-02 Ecofit 2GDR45 146x180L centrifugal fan is supplied with the Cefem Power PE 600 PL V FS40 capacitor to ensure optimal starting torque and efficiency.

Key Features of the N11-02 Ecofit 2GDR45 146x180L 04S:

• Galvanised steel forward curved impellers
• Black painted scroll housing
• Black painted external rotor motor single phase (1~)
• Compact design ideal for confined spaces
• IP44 protection (depending on installation & position as per EN60034-5)
• Ball bearing
• Balance level: G2.5


Key Features of the Cefem Power PE 600 PL V FS40:

• Rated voltage: From 250VAC up to 550VAC
• Self-Healing Dielectric: Metallised polypropylene (MKP)
• Housing: Self-extinguishing plastic in PC-ABS UL 94 V0
• Sealing: Polyurethane resin
• Tolerance: ± 2, ± 5, ± 10 % Asymmetrical upon request
• Operating temperature: -40° to +85°C
• Diameter (mm): 30
• Length (mm): 49
• Cable length: Approximately 30cm

View the full range of Ecofit centrifugal fans, available to buy online. Contact us for more information or if you require a specific model not listed online.
