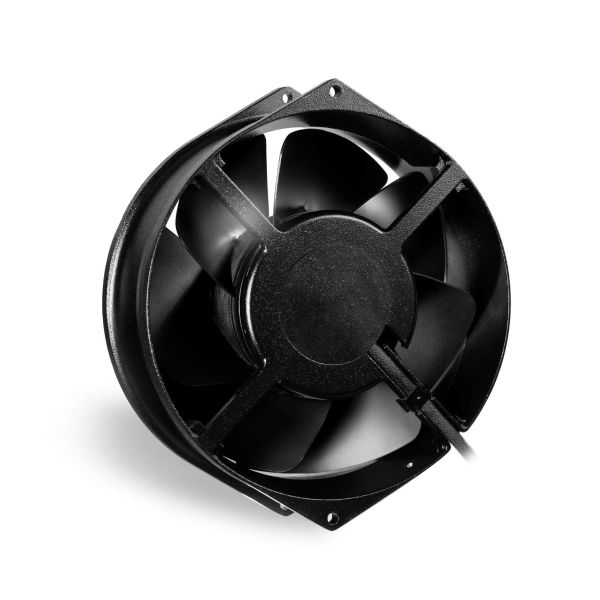

A17M12SWBM00 AC Axial Compact Fan 172x150x55mm 332m³/h 20W 115V Ball Bearing

A17M12SWBM00 AC Axial Compact Fan 172x150x55mm 332m³/h 20W 115V Ball Bearing

SKU
A17M12SWBM00
Buy 20 for £95.27 each and save 5%
In Stock
View Downloads
SKU A17M12SWBM00
Manufacturer FANDISEU
Axial Fan Dimensions 172x150x38mm
Max Air Flow (50Hz) 332(m³/h)
Airflow Range (50Hz) 100 to 250m³/h
Bearing Type Ball Bearing
Voltage 230V.a.c

Description

Specially designed for control panels and enclosures, the High-Temperature AC Axial Compact Fan range from Axair online offers:

  • Compact sizes
  • Ball & Sleeve Bearing options on many lines
  • Dust and water protection
  • A wide selection of airflows

Standard Specifications of A17M12SWBMT0 AC Axial Compact Fan:

  • Casing Material: Black varnished aluminium
  • Impeller Material: Metal
  • Protection degree: IP20, according to EN 60529 standard
  • Fixing system: by No 2 M4 screws
  • Insulation Class: F
  • Motor protection: Impendance
  • Storage temperature: from -40°C to +90°C
  • Rated temperature range: from -40°C to +90°C Lifetime L10 at 40°C: 40,000 h
  • Electrical connection: 2 leads 22AWG UL 3239, 350 mm long
  • Weight: 1.1 kg
  • Approvals: UL E223195



Dimension 172x150x55
Rated Voltage 115Va.c
Rated Power (50/60Hz) 42/42
Max Air Flow (m3/h) 332/391
Static Pressure (50/60Hz) 137/157
Rated Speed (50/60Hz) (RPM) 2800/3250
Noise (50/60Hz) (dB(A) 49.0/53.0
Bearing Type Ball
