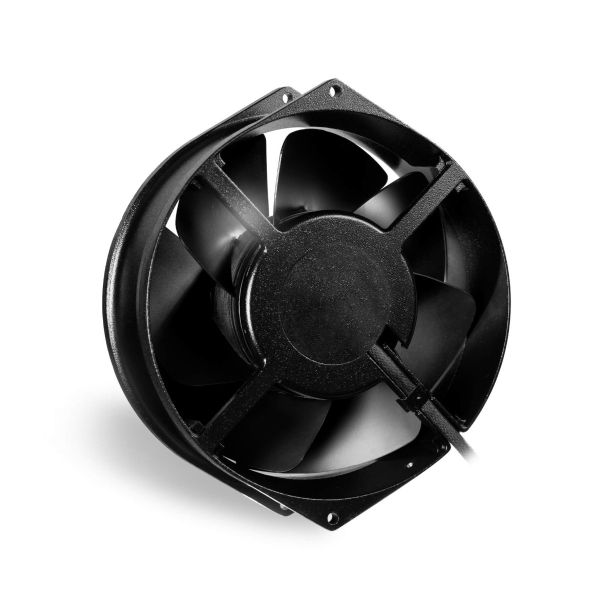

A17M23SWBMT0 AC Axial Compact Fan 172x150x55 331m³/h 42W 230V Ball Bearing
SKU
A17M23SWBMT0
Buy 20 for
£107.07
each and save 5%
£112.71
In Stock
| SKU | A17M23SWBMT0 |
|---|---|
| Manufacturer | FANDISEU |
| Current Type | AC |
| Fan Type | AC Compact Axial Fan |
| ATEX | No |
| Rated Voltage | 230V.a.c |
| Frequency | 50-60Hz |
| Dimensions | 113.5x113.5x38mm |
| Connection Type | Cable |
| Cable Length | 11.8" - 300mm |
| Max Air Flow (50Hz) | 151(m³/h) |
| Airflow Range (50Hz) | 100 to 250m³/h |
| Bearing Type | Ball Bearing |
| Speed (RPM) | 2800 |
| IP Rating | IP20 |
Description
Electronics cooling fans specially designed for control panels and enclosures, the AC Axial Compact Fan range from Axair online offers:
- Compact sizes
- Ball & Sleeve Bearing options on many lines
- Dust and water protection
- A wide selection of airflows
Standard Specifications of A17M23SWBMTO AC Axial Compact Fan:
- Casing Material: Black varnished aluminium
- Impeller Material: Metal
- Protection degree: IP44, according to EN 60529 standard
- Fixing system: by No 2 M4 screws
- Insulation Class: F
- Motor protection: Impendance
- Storage temperature: from -40°C to +90°C
- Rated temperature range: from -40°C to +90°C Lifetime L10 at 40°C: 40,000 h
- Electrical connection: 2 leads 22AWG UL 3239, 350 mm long
- Weight: 1.1 kg
- Approvals: UL E223195
| Dimension | 172x150x55mm |
| Rated Voltage | 230Va.c |
| Rated Power (50/60Hz) | 42/42 |
| Max Air Flow (m3/h) | 331/391 |
| 137/157 |
|
| Rated Speed (50/60Hz) (RPM) | 2800/3250 |
| Noise (50/60Hz) (dB(A) | 49/53 |
| Bearing Type | Ball |
