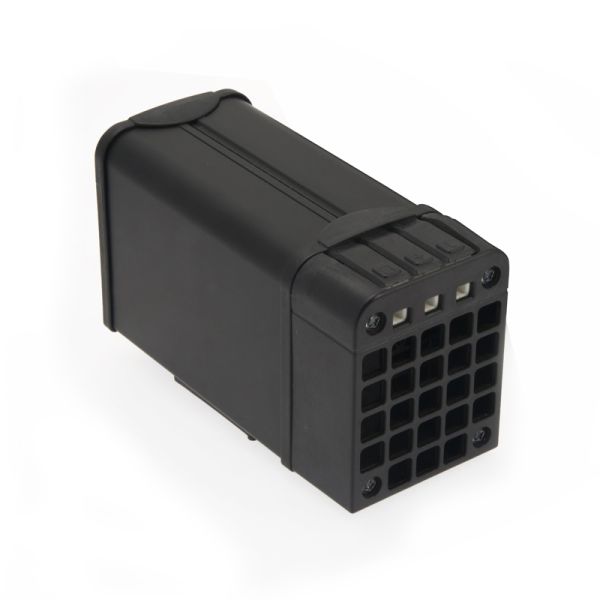

HTM060 60W Enclosure Heater. 265V Max. Terminal Block IP20 Cage Clamp - Metal Housing

HTM060 60W Enclosure Heater. 265V Max. Terminal Block IP20 Cage Clamp - Metal Housing

SKU
HTM060
Buy 18 for £36.08 each and save 5%
£37.98
22 left in Stock
Lead Timesvariable - contact us on 01782 349 430
ManufacturerFANDISEU
Heating Power (w)60
Wiring TypeTerminal
Heater TypeMetallic with Terminal

Description

Axair heaters have a self regulating PTC element and are made from a black anodised aluminium

Key Features of HTM060:

  • Heating element: PTC thermistor, self regulating
  • Heat sink: black anodised extruded aluminium profile
  • Method of mounting: snap-on fixing on RAIL 35mm EN 50022
  • Rated temperature range: from -30°C to +50°C
  • Storage temp. range from -40°C to +70°C
  • Protection degree: IP20
  • Dimensions (mm): 138x40x61.5mm
  • Electrical connection:by 3 poles terminal L-N-PE 3 clamps for solid or fine stranded wire 0.5 ÷ 2.5mm2 (20 ÷ 16 AWG)
  • Appliance class: class l
  • Rated voltage range: 110-240 V a.c./d.c.
  • Rated frequency: 50/60 Hz
  • Max voltage: 265 V a.c./d.c.
  • Applicable standards: EN 60335-1
  • Approvals: CE; cURus certified till max 50°C



View the datasheet
