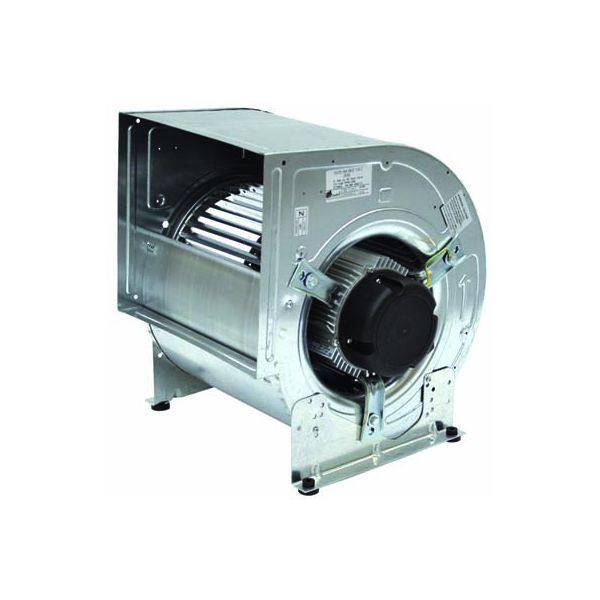

BD-12/12-T6-1.1kW - 3 Phase Inch Blower without Flange (ErP 2015)

These forward curved double inlet centrifugal fans are also known as the "Inch Blower" due to their simple impeller design and size. The BD Fan is a high quality forward curved centrifugal fan featuring a galvanised steel scroll and impeller, dust and hosed water protected to IP55 as standard.

Suitable for 3 phase supply.

ERP 2015 compliant.

Anti-vibration mounts are fitted in 3 places, at the motor pad on the side plate and on the foot corners to prevent electromagnetic vibration transmitting to the unit frame.

Standard BD fans are speed controllable by voltage variation, and can be supplied with 3 speed tapped winding. The fans are fitted with rigid motor supports to withstand mechanical handling damage.

Typical low pressure applications include:

• air conditioning units
• air curtains
• heating and cooling coils
• air handling units
• ventilated workbenches

View the flange for the BD-12/12.

A full selection of BD low pressure centrifugal fans are available to buy online, including the following models, BD-7/7-M4-0.13kW, BD-7/7-M6-0.04kW, BD-9/7-M4-0.35kW, BD-9/7-M6-0.13kW, BD-9/9-M4-0.35kW, BD-9/9-M6-0.13kW, BD-10/8-M4-0.59kW, BD-10/8-M6-0.21kW, BD-10/10-M4-0.59kW, BD-10/10-M6-0.21kW, BD-12/9-M6-0.76kW, BD-12/9-T6-1.1kW, BD-12/12-M6-0.76kW and BD-12/12-T6-1.1kW.
