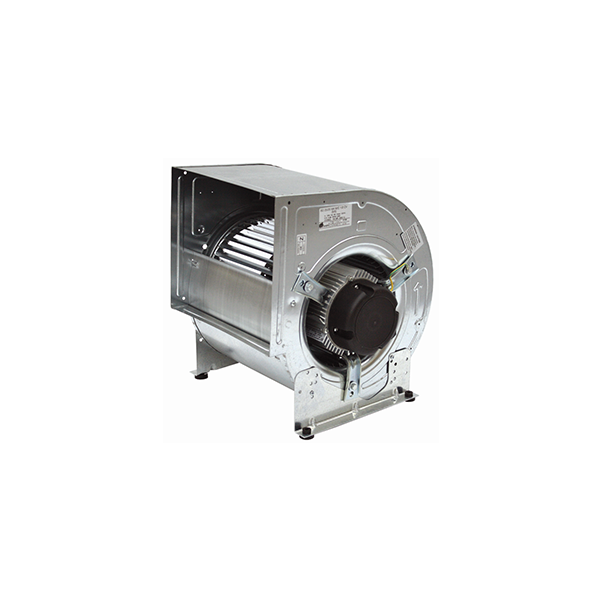

BD-9/7-M6-0.13kW Inch Blower without Flange

These forward curved double inlet centrifugal fans are also known as the "Inch Blower" due to their simple impeller design and size. The BD Fan is a high quality forward curved centrifugal fan featuring a galvanised steel scroll and impeller, dust and hosed water protected to IP55 as standard.

Anti-vibration mounts are fitted in 3 places, at the motor pad on the side plate and on the foot corners to prevent electromagnetic vibration transmitting to the unit frame.

Standard BD fans are speed controllable by voltage variation, and can be supplied with 3 speed tapped winding. The fans are fitted with rigid motor supports to withstand mechanical handling damage.

ERP 2015 compliant.

Typical low pressure applications include:

• air conditioning units
• air curtains
• heating and cooling coils
• air handling units
• ventilated workbenches

View the flange for the BD-9/7

We stock a full range of low pressure centrifugal inch blowers. The following models from our BD range are available to buy online:

BD-7/7-M4-0.13kW | BD-7/7-M6-0.04kW | BD-9/7-M4-0.35kW | BD-9/7-M6-0.13kW | BD-9/9-M4-0.35kW | BD-9/9-M6-0.13kW | BD-10/8-M4-0.59kW | BD-10/8-M6-0.21kW | BD-10/10-M4-0.59kW | BD-10/10-M6-0.21kW | BD-12/9-M6-0.76kW | BD-12/9-T6-1.1kW | BD-12/12-M6-0.76kW | BD-12/12-T6-1.1kW.
