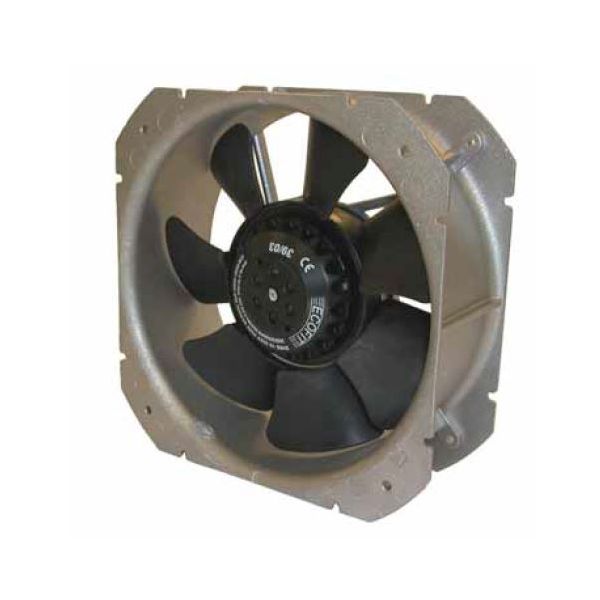

C22S40HKBD00 AC Axial Compact Fan 218x218x83 970m³/h 174W 400V Ball Bearing

C22S40HKBD00 AC Axial Compact Fan 218x218x83 970m³/h 174W 400V Ball Bearing

SKU
C22S40HKBD00
Buy 8 for £281.58 each and save 5%
Lead time variable - contact us on 01782 349 430
View Downloads
SKU C22S40HKBD00
Lead Times variable - contact us on 01782 349 430
Manufacturer FANDISEU
Axial Fan Dimensions 218x218x83mm
Max Air Flow (50Hz) 970(m³/h)
Airflow Range (50Hz) >501m³/h
Bearing Type Ball Bearing
Voltage 400V

Description

Specially designed for control panels and enclosures, the AC Axial Compact Fan range from Axair online offers:

  • Compact sizes
  • Ball & Sleeve Bearing options on many lines
  • Dust and water protection
  • A wide selection of airflows

Standard Specifications of C22S40HKBD00 AC Axial Compact Fan:

  • Casing Material: Die-casting aluminium painted black
  • Impeller Material: Black thermoplastic UL 94V-0
  • Protection degree: IP20, according to EN 60529 standard
  • Fixing system: by No 4 M4 screws
  • Motor protection: Impedance
  • Storage temperature: from -40°C to +70°C
  • Rated temperature range: from -10°C to +60°C Lifetime L10 at 40°C: 30,000 h
  • Electrical connection: bronze flat terminals (3x0.5 mm)
  • Weight: 1.9 kg
  • Approvals: UL E223195; VDE 40009963



Dimension 218x218x83
Rated Voltage 400V
Rated Power (50/60Hz) 174
Max Air Flow (m3/h) 970
Static Pressure (50/60Hz) 265
Rated Speed (50/60Hz) (RPM) 2770
Noise (50/60Hz) (dB(A) 61.0
Bearing Type Ball
