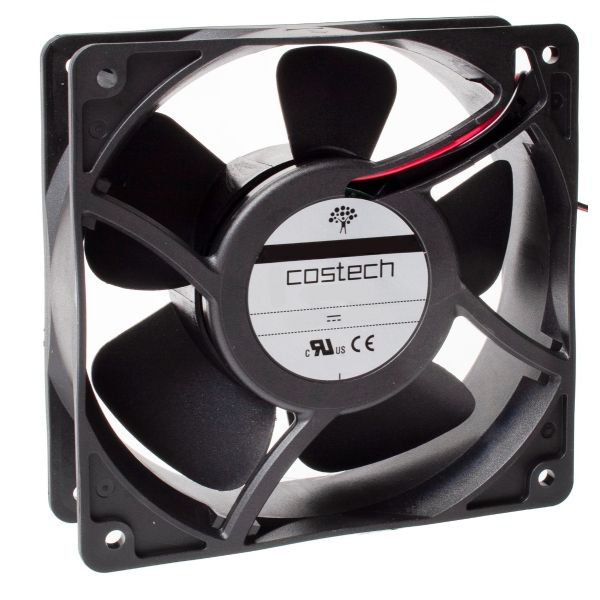

D12B07HWBA00 DC Axial Compact Fan 120x120x38 179m3/h 9.6W 48V Ball Bearing

D12B07HWBA00 DC Axial Compact Fan 120x120x38 179m3/h 9.6W 48V Ball Bearing

SKU
D12B07HWBA00
Buy 40 for £44.49 each and save 5%
Lead time variable - contact us on 01782 349 430
View Downloads
SKU D12B07HWBA00
Lead Times variable - contact us on 01782 349 430
Manufacturer FANDISEU
Axial Fan Dimensions 120x120x38mm
Max Air Flow (50Hz) 179(m³/h)
Airflow Range (50Hz) 100 to 250m³/h
Bearing Type Ball Bearing
Voltage 48Vd.c.

Description

Electronics cooling fans specially designed for control panels and enclosures, the DC Axial Compact Fan range from Axair online offers:

  • Compact sizes
  • Ball & Sleeve Bearing options on many lines
  • Dust and water protection
  • A wide selection of airflows

Standard Specifications of D12B07HWBA00 DC Axial Compact Fan:

  • Casing material: Black fibreglass reinforced plastic (PBT) UL 94V-0
  • Impeller material:Black fibreglass reinforced plastic (PBT) UL 94V-0
  • Protection degree: IP20, according to EN 60529 standard
  • Fixing system: by No. 4 M4 screws
  • Motor protection: IC
  • Storage temperature: from -40°C to +70°C from -10°C to +70°C (ball bearing); from -10°C to +60°C (sleeve bearing)
  • Rated temperature range: 70,000 h at 40°C and 40,000 h at max temperature (ball bearing); 50,000 h at 40°C and 35,000 h at max temperature (sleeve bearing) Lifetime L10 at 40°C:
  • Electrical connection: 2 leads 24AWG UL 1007, 300 mm long.
  • Approvals: UL E223195



Dimension 120x120x38
Rated Voltage 48 Vd.c.
Rated Power (W) 9.6
Max Air Flow (m3/h) 179
Static Pressure (Pa) 95
Rated Speed (RPM) 2800
Noise  (dB(A)) 46.7
Bearing Type Ball
