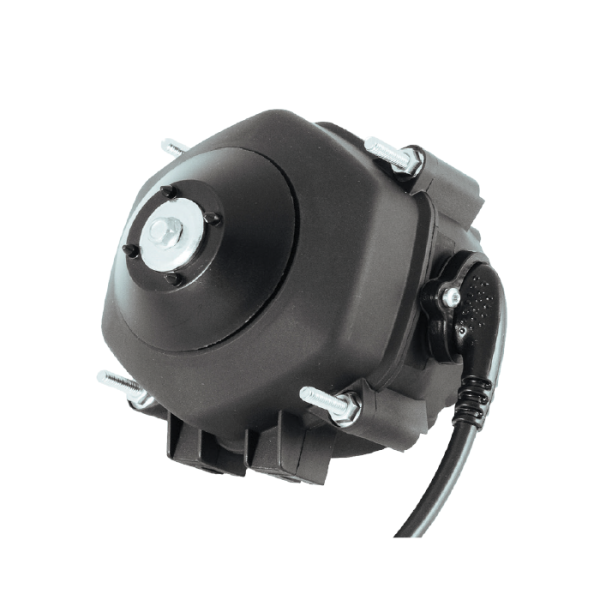

ECR01B0471 Wellington EC Fan Motor, 2 Speed, IP55

Delivered in 2-3 days, the AoFrio Wellington ECR01B0471 motor leads the industry in efficiency and reliability.

The ECR01B0471 is part of the advanced ECR motors that use up to 74% less power than traditional shaded pole models, reducing your carbon footprint and offering unparalleled energy savings. Designed for versatility, these motors ensure silent operation and provide customisable controls to suit any cooler fleet. Built with food-grade materials and high-quality ingress protection, our ECR motors are engineered for a lifespan exceeding 10 years, making them the smart choice for efficient, reliable, and adaptable cooling solutions.

 Aofrio Wellington ECR1 high performance refrigeration fan motors offer:

• User defined speeds and direction of rotation
• High efficiency
• Dual speed operation
• Timed reverse
• RoHS and REACH compliant

Standard Specifications:

• Input voltage range: 190-254V or 100-127V
• Output power range: 3-25W
• Speed range: 700-2300 RPM
• Max. input current: 0.41A
• Insulation class: Class A
• Thermal protection: Self resetting thermal protection, electronic locked rotor/stall detection
• Refrigerant compatibility: HFC, CO2 and hydrocarbon (per IEC 60335-2-89 Annex BB
• ATEX (EX) IEC 60079-7 Group 2, Category 3G
• IP rating: IP55
• Operating temperature range: -30°C to +50°C (-22°F to +122°F)
• Storage temperature range: -40°C to +80°C (-40°F to +176°F)
• Weight (max): 0.85kg
