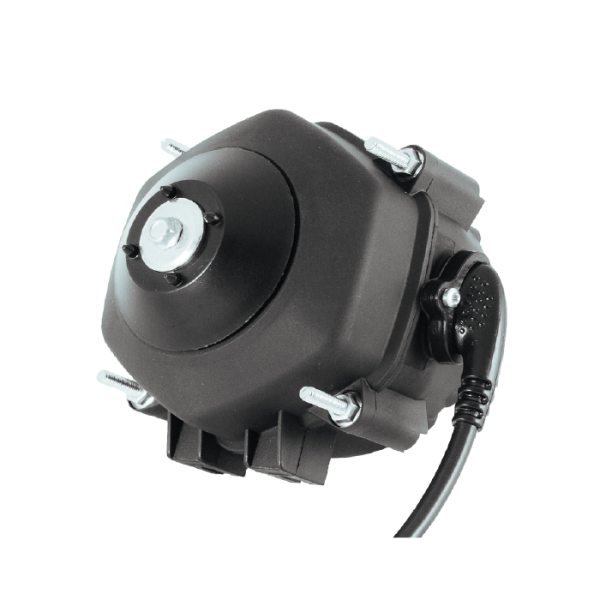

ECR2-0C81 Wellington EC Fan Motor, 3 Speed, IP67

Delivered in 2-3 days, the AoFrio Wellington ECR2-0C81 motor leads the industry in efficiency and reliability.

The ECR2-0C81 is part of the advanced ECR motors that use up to 74% less power than traditional shaded pole models, reducing your carbon footprint and offering unparalleled energy savings. Designed for versatility, these motors ensure silent operation and provide customisable controls to suit any cooler fleet. Built with food-grade materials and high-quality ingress protection, our ECR motors are engineered for a lifespan exceeding 10 years, making them the smart choice for efficient, reliable, and adaptable cooling solutions.

3 Speed Range - Anywhere between 300-1800 RPM, but for practical application, the typical pre-set speed settings used in refrigeration motors include 1300 RPM, 1550 RPM, and 1800 RPM.

These three speeds align with common industrial fan requirements:

1300 RPM is quieter and energy-efficient.
1550 RPM strikes a balance of airflow and noise.
1800 RPM offers the maximum designed airflow.

Aofrio Wellington ECR2 high performance refrigeration fan motors offer:

• Dual voltage
• High efficiency
• High power factor
• Silent operation
• Drop-in replacement for Q frame or unit bearing motors
• RoHS and REACH compliant

Standard Specifications:

• Input voltage range 70-264V, 50-60Hz (all models)
• Output power range 0-13W
• Max. input power 20.5W
• Max. input current 0.10A (@230V), 0.20A (@115V)
• Power factor up to 0.95 depending on load and voltage
• EMC protection 4000V (per EN61000-6-2)
• Noise SWL 37 dBA @ 1300 RPM (per ISO1680)
• Insulation Class A (105°C)
• Electronic thermal protection. Locked rotor and automatic thermal
• Refrigerant compatibility HFC, CO2 and hydrocarbon (per IEC 60335-2-89 Annex BB
• ATEX (EX) IEC 60079-7 Group 2, Category 3G
• IP rating IP67
• Operating temp. range -30°C to +50°C (-22°F to +122°F)
• Storage temp. range -40°C to +80°C (-40°F to +176°F)
• Weight (max) 0.54kg (1.2lb)
