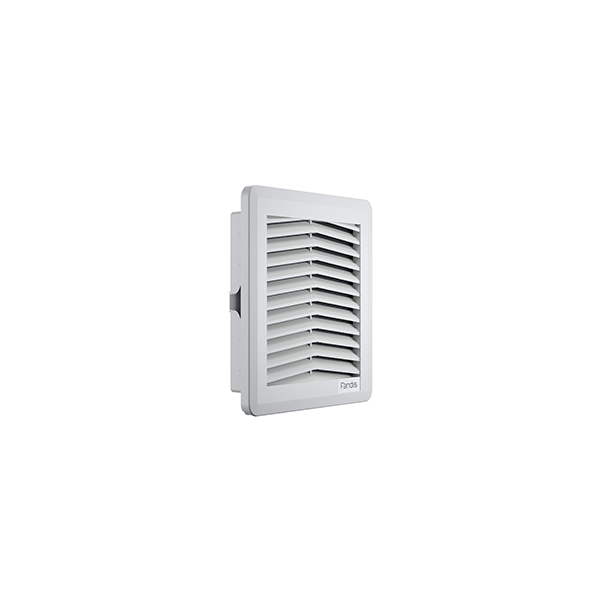

FF12UC EMC Fandis Exhaust Filter to Fit Cut Out 124x124mm. RAL 7035

The Fandis FF12UC EMC exhaust filter is designed for efficient ventilation in electrical control panels, industrial enclosures and electrical cabinets. Suitable for a 124 x 124 mm panel cut-out, it provides a practical solution for exhausting warm air and supporting effective thermal management in electrical equipment. Featuring a screwless connection and a quick, tool-free clip-on mounting system, the FF12UC enables fast installation and simplifies filter replacement, helping to reduce maintenance time.

The Fandis FF exhaust filter range is designed for simplicity and versatility, offering a broad selection of filter configurations for both indoor and outdoor applications. Combining easy maintenance with reliable protection, the range provides flexible solutions to meet diverse enclosure ventilation requirements.

FF12UC Exhaust Filter Technical data:

• Mounting Wall Thickness 1.3-3.2 mm
• Spare Parts Filter Media M12FPF-EU3
• Casing Material PC/ABS UL94 V-0
• RAL Number 7035
• Filter Class G3 EN 779
• Filter Class ISO coarse 55% ISO 16890
• Filter Material thermo-linked progressive structure synthetic fibre
• IP Protection Degree IP54
• Operating Temperature -30÷60 °C
• Storage Temperature -40÷70 °C

Dimensions of the FF12UC: 150mm (w) x 150mm (h) x 22mm (d)

View the full range of Fandis FF exhaust filters.
