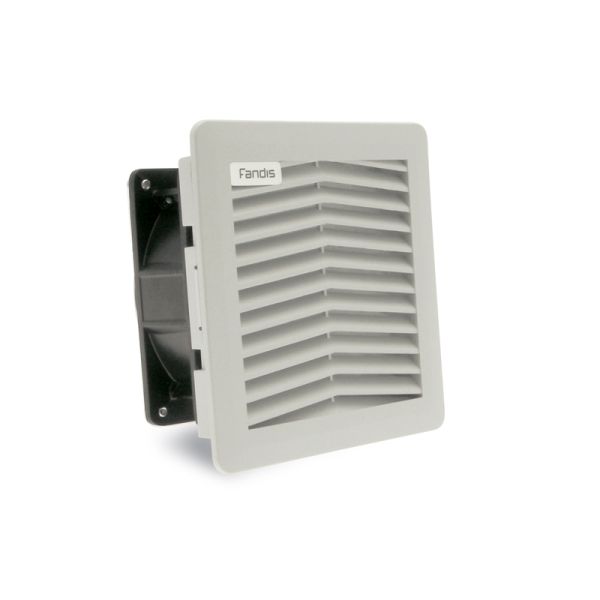

FPF12KU115BER-110 Fandis Filter Fan Unit 115V AC 57m³/h Reverse Airflow. Fits Cut Out 125x125mm. RAL 7035

FPF12KU115BER-110 Fandis Filter Fan Unit 115V AC 57m³/h Reverse Airflow. Fits Cut Out 125x125mm. RAL 7035

Buy 20 for £56.19 each and save 5%
In Stock
View Downloads
Manufacturer FANDISEU
Voltage 115V.a.c
Cut Out Size 125x125mm
EMC Shielded No
Airflow Range (50Hz) < 100m³/h
Max Air Flow (50Hz) 57(m³/h)
Airflow Direction Reverse (Blow Out)


Specially designed for control panels and enclosures, the FPF range of fandis filter fan units offer:

  • Compact sizes and low external profile
  • Fast mounting thanks to plastic elastic hooks
  • Integrated sealing gaskets for dust and water protection

Standard Specifications of Filter Fan Units:

  • Mounting without screws in square openings, tolerance range of 1.5mm
  • Possible fixing with V-shaped head screws (not supplied)
  • Standard RAL 7035 colour
  • Washable filter media supplied
  • IP54 rated
  • CSA approved
  • Shielded ball bearing fans
  • Suitable for operation at 60Hz
  • 0.80kg
  • Temperature Range -10 to +50

Dimensions of FPF12KU115BER-110:

Standard Filter Fan Size: 150mm (w) x 150mm (h) x 71mm (d)

The FPF12KU115BER-110 offers a great solution to thermal management. As standard comes with the click fit mount which allows for fast mounting thanks to its elastic hooks. The IP54 fan comes with integrated sealing gaskets in polyurethane foam for dust and water protection and is compact with a plate thickness between 1.5 and 2.2mm. The filter fan unit can be fitted for a low external profile, or if more space inside the enclosure is needed an adaptor can be used giving the unit more space inside extending the filter fan units external profile. The filter media inside comes with G3 as standard but can be upgraded to G4 upon request. The filter media in thermos-linked progressive structure synthetic fiber can be washed and reused up to 10 times. This specific model contains shielded ball bearings. The FPF12KU115BER-110 is suitable for operation at both 50 and 60 Hz giving the unit a max airflow of 57/61 m3/h and can work within the temperature range of -10 to +50 Celsius. The filter fan can also come in IP55, 3R, Type 1 and EMC versions on request.  The FPF12KU115BER-110 has UL approval according to UL 508 as well as CE and cURus.

Dimension 150x150x71mm
Rated Voltage 115Va.c
Rated Power (50/60Hz) 20/18
Max Air Flow (m3/h) 57/61
Static Pressure (50/60Hz) 66/73
Noise (50/60Hz) (dB(A)) 46.0/49.0
Bearing Type Ball



We recommend using FPF12 filter fans alongside the FPF12KUG-100 air inlet/exhaust to allow the air to move freely through the enclosure.
