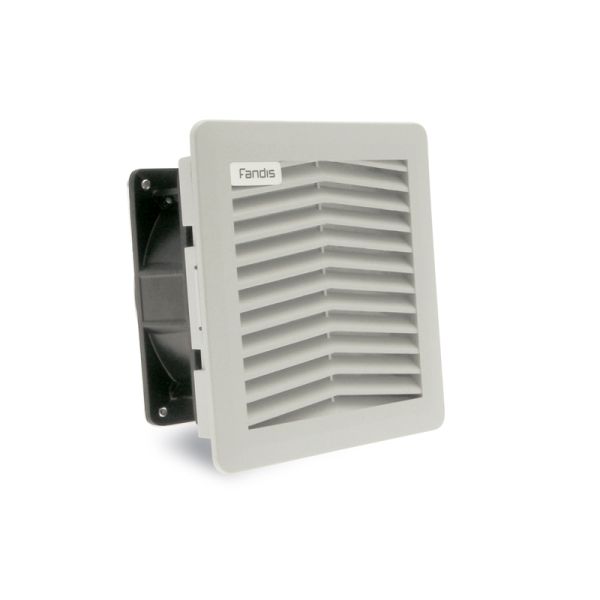

FPF12KU115BE-110 Fandis Filter Fan Unit 115V AC 57m³/h Standard Airflow. Fits Cut Out 125x125mm. RAL 7035

FPF12KU115BE-110 Fandis Filter Fan Unit 115V AC 57m³/h Standard Airflow. Fits Cut Out 125x125mm. RAL 7035

SKU
FPF12KU115BE-110
Buy 20 for £56.19 each and save 5%
tick In Stock
View Downloads chevron-right
SKU FPF12KU115BE-110
Manufacturer FANDISEU
Voltage 115V.a.c
Cut Out Size 125x125mm
EMC Shielded No
Airflow Range (50Hz) < 100m³/h
Max Air Flow (50Hz) 57(m³/h)
Airflow Direction Standard (Suck In)

Description

Specially designed for control panels and enclosures, the FPF range of filter fan units offer:

  • Compact sizes and low external profile
  • Fast mounting thanks to plastic elastic hooks
  • Integrated sealing gaskets for dust and water protection

Standard Specifications of Filter Fan Units:

  • Mounting without screws in square openings, tolerance range of 1.5mm
  • Possible fixing with V-shaped head screws (not supplied)
  • Standard RAL 7035 colour
  • Washable filter media supplied
  • IP54 rated
  • CSA approved
  • Shielded ball bearing fans
  • Suitable for operation at 60Hz
  • 0.80kg
  • Temperature Range -10 to +50

Dimensions of FPF12KU115BER-110:

Standard Filter Fan Size: 150mm (w) x 150mm (h) x 71mm (d)

This filter fan unit provides an effective solution to thermal management. The filter fan can also come in IP55, 3R, Type 1 and EMC versions on request.  The filter fan unit has UL approval according to UL 508 as well as CE and cURus. Click fit mount comes as standard throughout the range, which allows for fast mounting thanks to its elastic hooks. The fan comes with integrated sealing gaskets in polyurethane foam for dust and water protection making it IP54 and is compact with a plate thickness between 1.5 and 2.2mm. The FPF12KU115BE-110 can be fitted for a low external profile, or if more space inside the enclosure is needed an adaptor can be used giving the unit more space inside extending the filter fan units external profile. The filter media comes with G3 as standard but can be upgraded to G4 upon request. The filter media in thermos-linked progressive structure synthetic fiber can be washed up to 10 times and reused. The FPF12KU115BE-110 model contains shielded ball bearings. The FPF12KU115BE-110 110 is suitable for operation at both 50 and 60 Hz giving the unit a max airflow of 57/61 m3/h and can work within the temperature range of -10 to +50 Celsius.


Dimension 150x150x71mm
Rated Voltage 115Va.c
Rated Power (50/60Hz) 20/18
Max Air Flow (m3/h) 57/61
Static Pressure (50/60Hz) 66/73
Noise (50/60Hz) (dB(A)) 46.0/49.0
Bearing Type Ball





We recommend using FPF12 filter fans alongside the FPF12KUG-100 air inlet/exhaust to allow the air to move freely through the enclosure.
