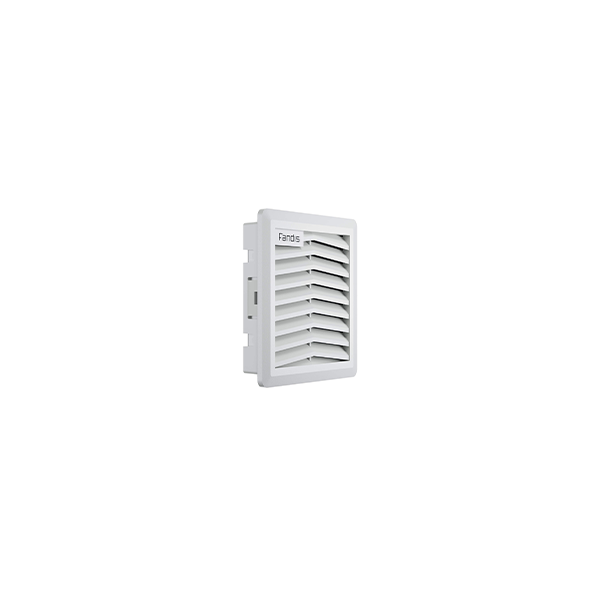

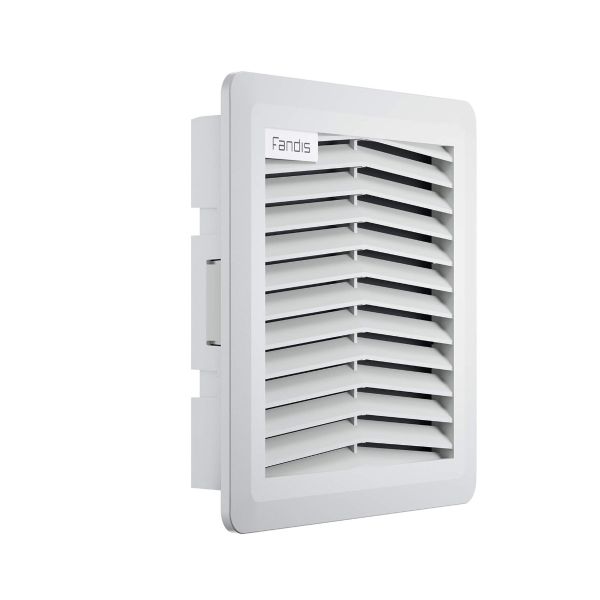

FPF12KUG-100 FPF Exhaust Filter, Outer Dims: 150x150mm, Fits Cut Out:125x125mm, IP54, G3 Media,

In stock

SKU FPF12KUG-100
  • Buy 20 for £6.90 each and save 5%

Description / FPF12KUG-100 Fan Filter Exhaust to Fit Cut Out 125x125mm | Fandis

Specially designed for control panels and enclosures, the FPF range of fan filter units offer:

  • Compact sizes and low external profile
  • Fast mounting thanks to plastic elastic hooks
  • Integrated sealing gaskets for dust and water protection

Standard Specifications of Exhaust Filter:

  • Mounting without screws in square openings, tolerance range of 1.5mm
  • Possible fixing with V-shaped head screws (not supplied)
  • Standard RAL 7035 colour
  • Washable filter media available here
  • IP54 rated
  • CSA approved
  • Also available as full unit with supplied fan

The FPF12KUG exhaust filter facilitates effective use of a fan filter unit when either delivering or exhausting air from an enclosure. Click fit mount comes as standard throughout the range, which allows for fast mounting thanks to its elastic hooks, this means no need for tools or gadgets to fit. The plastic parts are made of PC/ABS alloy. The FPF12KUG comes with integrated sealing gaskets in polyurethane foam for dust and water protection making it IP54 and is compact with a plate thickness range of 1.5mm. The filter media comes with G3 as standard but can be upgraded to G4 upon request. The filter media in thermos-linked progressive structure synthetic fiber can be washed up to 10 times and reused. The exhaust filter/inlet can be fitted for a low external profile, or if more space inside the enclosure is needed an adaptor can be used giving the unit more space inside extending the fan filter units external profile. The FPF12KUG comes as standard in colour RAL 7035, but is available in 4 other colours on request. The enclosure exhaust is UL approved as well as CSA approved. IP55, 3R, Type1 and EMC versions are also available on request. The Exhaust / inlet is also available as a full unit with a supplied fan from the range picked to meet requirements.

View the datasheet

More Information

Product NumberFANDISEU
Cut Out Size125x125mm
