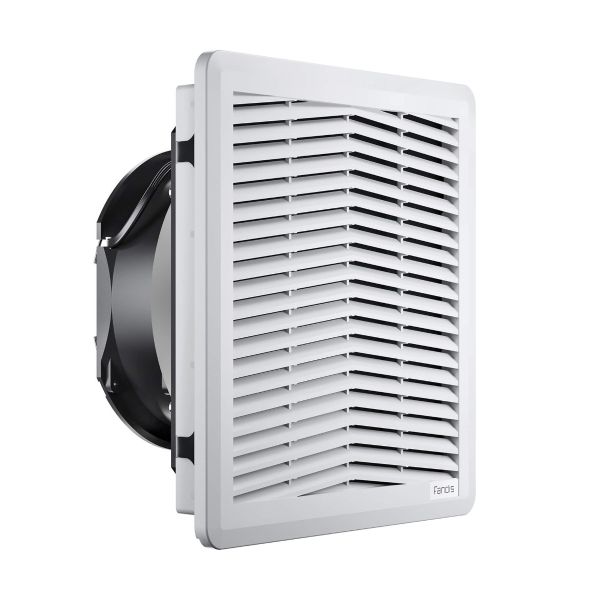

FF15A115UF Fandis Filter Fan Unit 115V AC 230m³/h Standard Airflow. Fits Cut Out 223X223mm. RAL 7035

Name: FF15A115UF Fandis Filter Fan Unit 115V AC 230m³/h Standard Airflow. Fits Cut Out 223X223mm. RAL 7035
SKU: FF15A115UF
Price: 136.08 GBP
Availability: InStock

SKU

FF15A115UF

Buy 10 for £129.28 each and save 5%

£136.08

Quantity

In Stock

View Downloads

SKU	FF15A115UF
Manufacturer	FANDISEU
Rated Voltage	115V.a.c.
Cut Out Size	223x223mm
EMC Shielded	No
Airflow Range (50Hz)	100 to 250m³/h
Max Air Flow (50Hz)	230(m³/h)
Airflow Direction	Standard (Suck In)

Description

Specially designed for electronic cooling inside control panels and enclosures, the FF range of filter fan units feature a screwless connection with a fast tool-free mounting system. Available in a wide range of configurations for both indoor and outdoor use.

Technical data

Max Airflow 230/270 m³/h

Airflow with Exhaust Filter 159/190 m³/h

Max Static Pressure 115/155 Pa

Rated Voltage 115 V a.c.

Rated Current 0.28/0.26 A

Rated Power 31/31 W

Operating Voltage 103-126 V a.c.

Frequency 50/60 Hz

Appliance Class I

Motor Protection Thermally Protected

Mounting Wall Thickness 1.3-3.7 mm

Spare Parts Filter Media M15FPF-EU3

Casing Material PC/ABS UL94 V-0

RAL Number 7035

Airflow Direction Direct

Electrical Connection Screwless Terminal Block

Life Expectancy 40000 h at 40 °C

Wires Section 20-14 AWG

Wires Section 0.75-2.5 mm²

Fan Noise 50/55 dB(A)

Filter Class ISO coarse 55% ISO 16890

Filter Class G3 EN 779

Filter Material thermo-linked progressive structure synthetic fibre

IP Protection Degree IP54

Operating Temperature -30÷55 °C

Storage Temperature -40÷70 °C

UL Ambient Temperature 55 °C

Dimensions of FF15A115UF:

Standard Filter Fan Size: 250mm (w) x 250mm (h) x 116mm (d)

Rated Voltage	115Va.c
Rated Power (50/60Hz)	31/31
Max Air Flow (m3/h)	230/270
Static Pressure (50/60Hz)	115/155
Noise (50/60Hz) (dB(A))	50/55
