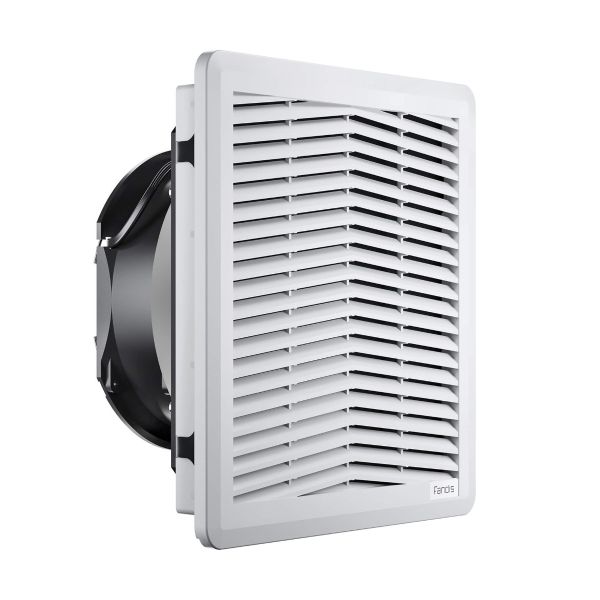

Specially designed for electronic cooling inside control panels and enclosures, the FF range of filter fan units feature a screwless connection with a fast tool-free mounting system. Available in a wide range of configurations for both indoor and outdoor use.
Technical data
Airflow with Exhaust Filter 159/190 m³/h
Rated Current 0.14/0.16 A
Operating Voltage 207-253 V a.c.
Frequency 50/60 Hz
Appliance Class I
Motor Protection Thermally Protected
Mounting Wall Thickness 1.3-3.7 mm
Spare Parts Filter Media M15FPF-EU3
Casing Material PC/ABS UL94 V-0
RAL Number 7035
Airflow Direction Direct
Electrical Connection Screwless Terminal Block
Life Expectancy 40000 h at 40 °C
Wires Section 20-14 AWG
Wires Section 0.75-2.5 mm²
Fan Noise 50/55 dB(A)
Filter Class ISO coarse 55% ISO 16890
Filter Class G3 EN 779
Filter Material thermo-linked progressive structure synthetic fibre
IP Protection Degree IP54
Operating Temperature -30÷55 °C
Storage Temperature -40÷70 °C
UL Ambient Temperature 55 °C
Dimensions of FF15A230UF:
Standard Filter Fan Size: 250mm (w) x 250mm (h) x 116mm (d)
