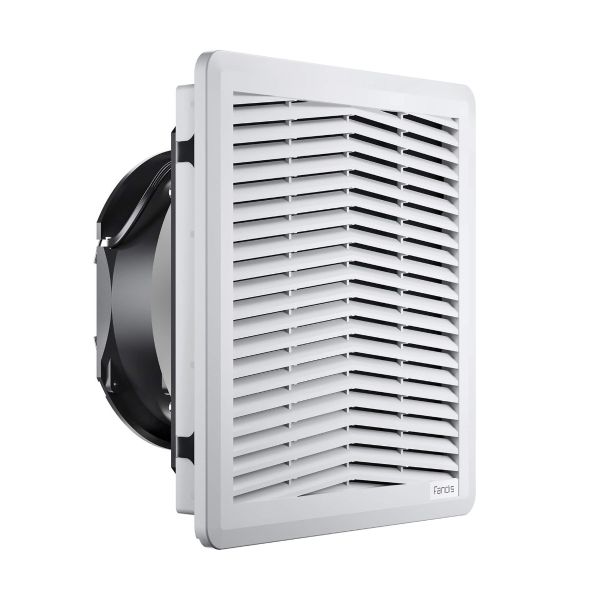

FF15A230UNR2 Fandis Filter Fan Unit 230V AC 238m³/h Reverse Airflow. Fits Cut Out 223x223mm. RAL 7035

FF15A230UNR2 Fandis Filter Fan Unit 230V AC 238m³/h Reverse Airflow. Fits Cut Out 223x223mm. RAL 7035

SKU
FF15A230UNR2
Buy 10 for £123.31 each and save 5%
tick Lead time variable - contact us on 01782 349 430
View Downloads chevron-right
SKU FF15A230UNR2
Lead Times variable - contact us on 01782 349 430
Manufacturer FANDISEU
Voltage 230V.a.c
Cut Out Size 223x223mm
EMC Shielded No
Airflow Range (50Hz) 100 to 250m³/h
Max Air Flow (50Hz) 238(m³/h)
Airflow Direction Reverse (Blow Out)

Description

Specially designed for electronic cooling inside control panels and enclosures, the FF range of filter fan units feature a screwless connection with a fast tool-free mounting system. Available in a wide range of configurations for both indoor and outdoor use.



Technical data


  • Airflow with Exhaust Filter 185/222 m³/h
  • Rated Current 0.185/0.192 A
  • Operating Voltage 184-253 V a.c.
  • Frequency 50/60 Hz
  • Appliance Class I
  • Motor Protection Thermally Protected
  • Mounting Wall Thickness 1.3-3.7 mm
  • Spare Parts Filter Media M15FPF-EU3
  • Casing Material PC/ABS UL94 V-0
  • RAL Number 7035
  • Airflow Direction Reverse
  • Electrical Connection Screwless Terminal Block
  • Life Expectancy 100000 h at 25 °C
  • Wires Section 20-14 AWG
  • Wires Section 0.75-2.5 mm²
  • Fan Noise 52/56 dB(A)
  • Filter Class ISO coarse 55% ISO 16890
  • Filter Class G3 EN 779
  • Filter Material thermo-linked progressive structure synthetic fibre
  • IP Protection Degree IP54
  • Operating Temperature -10÷55 °C
  • Storage Temperature -40÷70 °C
  • UL Ambient Temperature 55 °C


  • Dimensions of FF15A230UNR2:

    Standard Filter Fan Size: 250mm (w) x 250mm (h) x 104mm (d)



    Rated Voltage 230Va.c
    Rated Power (50/60Hz) 42/45
    Max Air Flow (m3/h) 238/283
    Static Pressure (50/60Hz) 195/252
    Noise (50/60Hz) (dB(A)) 52/56





    EMC versions are available on request.
