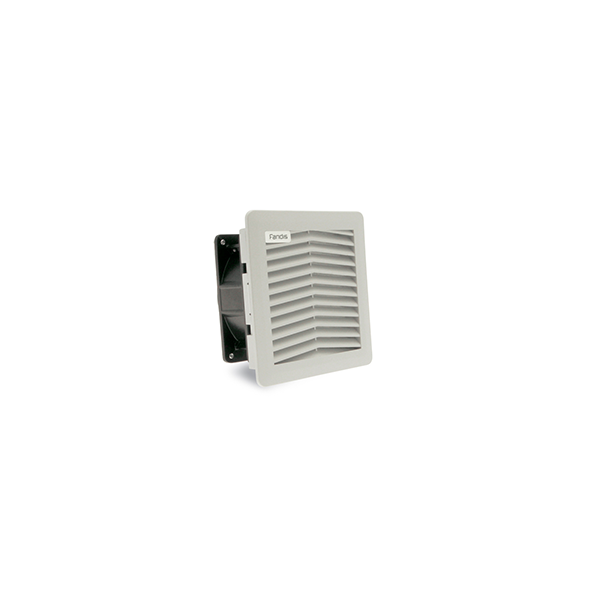

FPF12KU230BER-110 Fandis Filter Fan Unit 230V AC 57m³/h Reverse Airflow. Fits Cut Out 125x125mm

FPF12KU230BER-110 Fandis Filter Fan Unit 230V AC 57m³/h Reverse Airflow. Fits Cut Out 125x125mm

Buy 20 for £45.09 each and save 5%
In Stock
View Downloads
Lead Timesvariable - contact us on 01782 349 430
Cut Out Size125x125mm
Max Air Flow (50Hz)57(m³/h)
Airflow DirectionReverse (Blow Out)


Specially designed for control panels and enclosures, the FPF range of filter fan units offer:

  • Compact sizes and low external profile
  • Fast mounting thanks to plastic elastic hooks
  • Integrated sealing gaskets for dust and water protection

Standard Specifications of Filter Fan Units:

  • Mounting without screws in square openings, tolerance range of 1.5mm
  • Possible fixing with V-shaped head screws (not supplied)
  • Standard RAL 7035 colour
  • Washable filter media supplied
  • IP54 rated
  • CSA approved
  • Shielded ball bearing fans
  • Suitable for operation at 60Hz
  • 0.80kg
  • Temperature Range -10 to +50

Dimensions of FPF12KU230BER-110:

Standard Filter Fan Size: 150mm (w) x 150mm (h) x 71mm (d)

The FPF12KU230BER-110 provides an effective solution to thermal management. The filter fan can also come in IP55, 3R, Type 1 and EMC versions on request.  The FPF12KU230BER-110 has UL approval according to UL 508 as well as CE and cURus. Click fit mount comes as standard throughout the range, which allows for fast mounting thanks to its elastic hooks. The fan comes with integrated sealing gaskets in polyurethane foam for dust and water protection making it IP54 and is compact with a plate thickness between 1.5 and 2.2mm. The filter fan unit can be fitted for a low external profile, or if more space inside the enclosure is needed an adaptor can be used giving the unit more space inside extending the filter fan units external profile. The filter media comes with G3 as standard but can be upgraded to G4 upon request. The filter media in thermos-linked progressive structure synthetic fiber can be washed up to 10 times and reused. The FPF12KU230BER-110  model contains shielded ball bearings. The FPF12KU230BER-110 110 is suitable for operation at both 50 and 60 Hz giving the unit a max airflow of 57/61 m3/h and can work within the temperature range of -10 to +50 Celsius.

Dimension 150x150x71mm
Rated Voltage 230Va.c
Rated Power (50/60Hz) 20/19
Max Air Flow (m3/h) 57/61
Static Pressure (50/60Hz) 66/73
Noise (50/60Hz) (dB(A)) 46.0/49.0
Bearing Type Ball


We recommend using FPF12 filter fans alongside the FPF12KUG-100 air inlet/exhaust to allow the air to move freely through the enclosure.
