Specially designed for control panels and enclosures, the FPF range of filter fan units offer:

• Compact sizes and low external profile
• Fast mounting thanks to plastic elastic hooks
• Integrated sealing gaskets for dust and water protection

Standard Specifications of Filter Fan Units:

• Mounting without screws in square openings, tolerance range of 1.5mm
• Possible fixing with V-shaped head screws (not supplied)
• Standard RAL 7035 colour
• Washable filter media supplied
• IP54 rated
• CSA approved
• Shielded ball bearing fans
• Suitable for operation at 60Hz
• 1.09kg
• Temperature Range -10 to +50

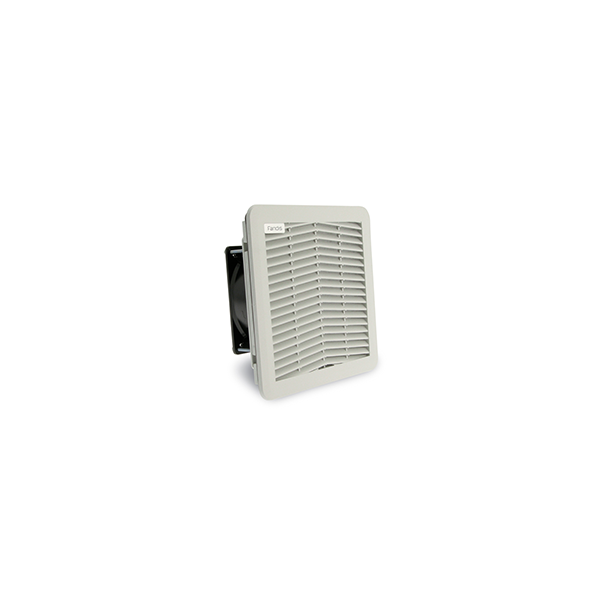

Dimensions of the FPF13KU230BE-110:

Standard Filter Fan Size: 204mm (w) x 204mm (h) x 98mm (d)

The FPF13KU230BE-110 is an efficient solution to thermal management. This filter fan unit is the standard airflow version of this model. This filter fan unit is IP54, this is due to the polyurethane foam permanent sealing gasket, IP55 is alsov available on request. G3 filter media is provided in the  FPF13KU230BE-110 however G4 media is available on request. All our filter medias are reusable and can be reused by washing, beating and blow drying. They can be washed multiple times times as they are made from a thermos-linked progressive structure synthetic fiber. This filter fan unit contains shielded ball bearings. The filter fan units plastic parts are made from ABS and PC alloy and has a plate thickness of between 1.5 and 2.2mm. The  FPF13KU230BE-110 is CE, cURus and CSA approved as well as UL approved according to UL 508. An EMC version, Type1, and 3R are available on request. The units compact, low profile side mount can be amended using an adaptor. It can sit flush to the enclosure with the unit enclosed in the cabinet or, alternatively, pushed out by using an adaptor to extend its external profile providing more space inside the enclosure. Fitting the  FPF13KU230BER-110 with or without an adaptor is easy as it features click fit mounting making installation fast and easy. This filter fan unit contains shielded ball bearings. The filter fan units plastic parts are made from ABS and PC alloy and has a plate thickness of between 1.5 and 2.2mm. The  FPF13KU230BE-110 is CE, cURus and CSA approved as well as UL approved according to UL 508. An EMC version, Type1, and 3R are available on request.

We recommend using FPF13 filter fans alongside the FPF13KUG-100 air inlet/exhaust to allow the air to move freely through the enclosure.
