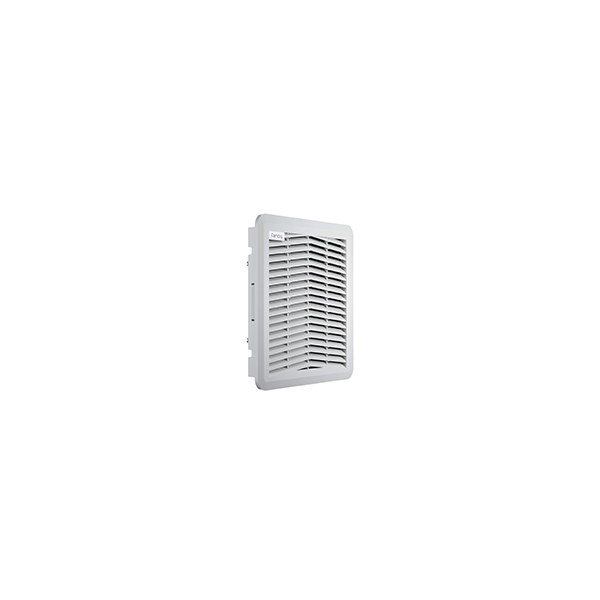

FPF13KUGC-110 EMC Fandis Exhaust Filter to Fit Cut Out 177x177mm. RAL 7035

Specially designed for control panels and enclosures, Fandis FPF exhaust filter units offer:

• Compact sizes and low external profile
• Fast mounting thanks to plastic elastic hooks
• Integrated sealing gasketts for dust and water protection

Standard Specifications of EMC Exhaust Filter:

• Approvals: CE
• Mounting Wall Thickness: 1.5-2.2 mm
• Spare Parts Filter Media: M13FPF-EU3
• RAL Number: 7035
• Filter Class: ISO coarse 55% ISO 16890
• Filter Class: G3 EN 779
• Filter Material: thermo-linked progressive structure synthetic fibre
• IP Protection Degree: IP54
• Operating Temperature: -10÷60 °C
• Storage Temperature: -40÷70 °C

Also available as full unit with supplied fan.

The FPF13KUGC exhaust filter facilitates effective use of a fan filter unit when either delivering or exhausting air from an enclosure. Click fit mount comes as standard throughout the range, which allows for fast mounting thanks to its elastic hooks, this means no need for tools or gadgets to fit. The plastic parts are made of PC/ABS alloy. The FPF13KUGC comes with integrated sealing gaskets in polyurethane foam for dust and water protection making it IP54 and is compact with a plate thickness range of 1.5mm. The filter media comes with G3 as standard but can be upgraded to G4 upon request. The filter media in thermos-linked progressive structure synthetic fiber can be washed up to 10 times and reused. The FPF13KUGC comes as standard in colour RAL 7035, but is available in 4 other colours on request. The enclosure exhaust is UL approved as well as CSA approved. IP55, 3R, and Type1 versions are also available on request. The Exhaust / inlet is also available as a full unit with a supplied fan from the range picked to meet requirements.
