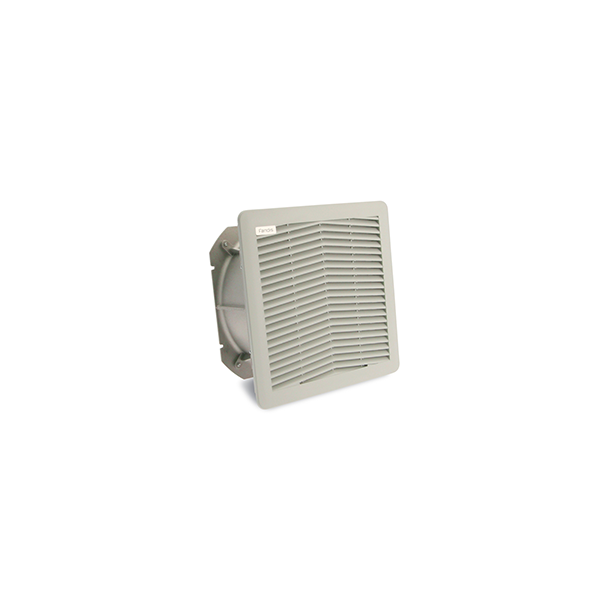

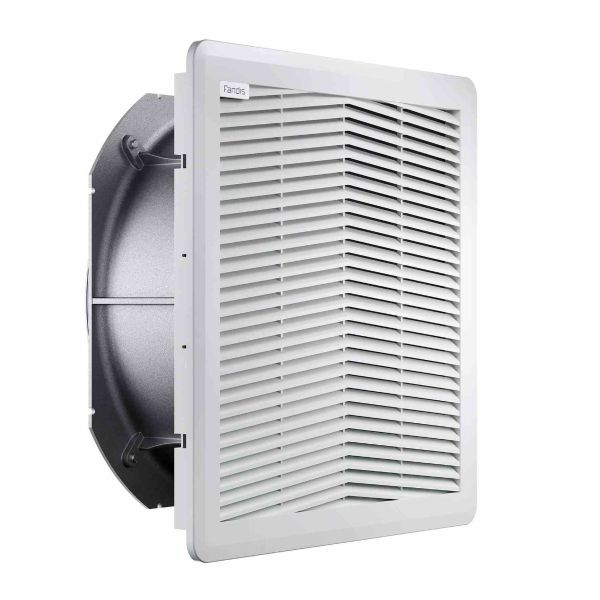

FPF15KGU115BER-120. Fandis Filter Fan Unit 115V AC 360m³/h Reverse Airflow. Fits Cut Out 223x223mm

FPF15KGU115BER-120. Fandis Filter Fan Unit 115V AC 360m³/h Reverse Airflow. Fits Cut Out 223x223mm

FPF15KGU115BER-120 Fandis Filter Fan Unit, 115v, 360m³/h, Reverse Airflow, RAL 7035, Outer Dims: 250 x 250mm, Fits Cut Out: 223 x 223mm, IP54, G3 Media, -10 ~ +50°C Rated Temp Range

In stock

SKU FPF15KGU115BER-120
  • Buy 10 for £121.49 each and save 5%

Description / FPF15KGU115BER-120. Fandis Filter Fan Unit 115V AC 360m³/h Reverse Airflow. Fits Cut Out 223x223mm

Specially designed for control panels and enclosures, the FPF range of fandis filter fan units offer:

  • Compact sizes and low external profile
  • Fast mounting thanks to plastic elastic hooks
  • Integrated sealing gaskets for dust and water protection

Standard Specifications of Filter Fan Units:

  • Mounting without screws in square openings, tolerance range of 1.5mm
  • Possible fixing with V-shaped head screws (not supplied)
  • Standard RAL 7035 colour
  • Washable filter media supplied
  • IP54 rated
  • CSA approved
  • Shielded ball bearing fans
  • Suitable for operation at 60Hz
  • 3.05kg
  • Temperature Range -10 to +50

Dimensions of the FPF15KGU115BER-120:

Standard Filter Fan Size: 250mm (w) x 250mm (h) x 113mm (d)

The high performance FPF15KGU115BER-120 filter fan unit is a great solution to thermal management. This filter fan unit is the reverse airflow version. With mounting without screws in square openings, its low profile and compact side mount are easily fit to the cabinet thanks to its click fit mounting system featuring plastic hooks. The FPF15KGU115BER-120 plate thickness lies between 1.5mm and 2.2mm and all plastic parts are in PC and ABS alloy. Its permanent sealing gasket in polyurethane foam provides the unit with IP54 protection from water and dust ingress. The filter media provided with the FPF15KGU115BER-120 is G3 filter media in thermo-linked progressive structure synthetic fiber according to EN779. G4 filter media is also available on request. The filter medias can be cleaned and reused, up to 10 times by washing, drying and lightly beating. The FPF15KGU115BER-120 can is suitable for operation up to 50/60Hz with an airflow of up to 360/400 m3/h. It meets CE and CSA approvals and has a working temperature of -10 to +55. It comes in colour RAL 7035 but it is available in a range of  other colours on request. It also has a UL protection degree which is type 12 and  IP55 protection is available along with EMC, 3R, and Type1 on request.

Dimension 250x250x113mm
Rated Voltage 115Va.c
Rated Power (50/60Hz) 50/64
Max Air Flow (m3/h) 360/400
Static Pressure (50/60Hz) 160/180
Noise (50/60Hz) (dB(A)) 66.0/69.2
Bearing Type Ball



View the datasheet



We recommend using FPF15 filter fans alongside the FPF15KUG-100 air inlet/exhaust to allow the air to move freely through the enclosure.



More Information

Product NumberFANDISEU
Cut Out Size223x223mm
Max Air Flow (50Hz)360(m³/h)
Airflow DirectionReverse (Blow Out)
