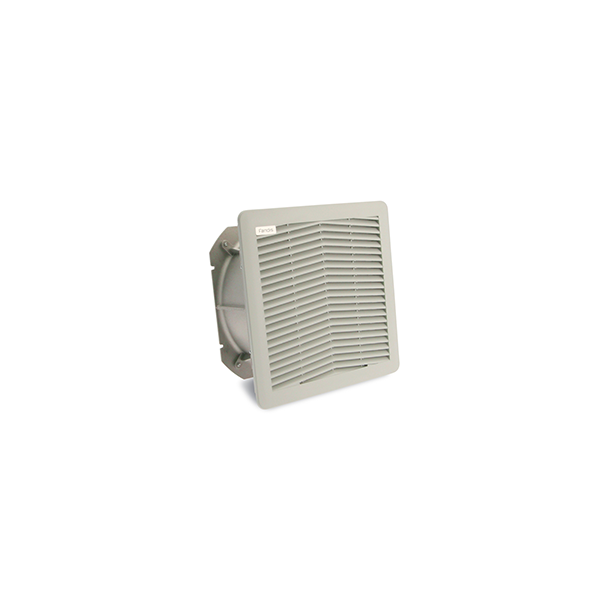

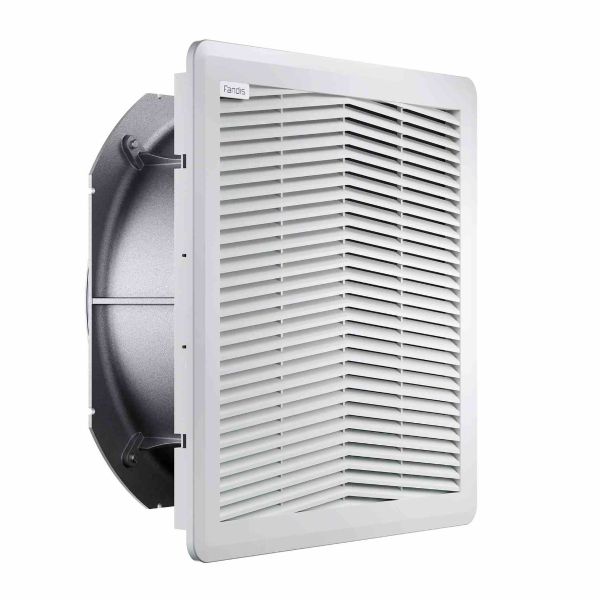

FPF15KGU230BE-120 Fan Filter Unit 230V 360m³/h Standard Airflow. Fits Cut Out 223x223mm. RAL 7035

FPF15KGU230BE-120 Fan Filter Unit 230V 360m³/h Standard Airflow. Fits Cut Out 223x223mm. RAL 7035

SKU
FPF15KGU230BE-120
Buy 10 for £154.33 each and save 5%
Lead time variable - contact us on 01782 349 430
View Downloads
SKU FPF15KGU230BE-120
Lead Times variable - contact us on 01782 349 430
Manufacturer FANDISEU
Voltage 230V.a.c
EMC Shielded No
Max Air Flow (50Hz) 360(m³/h)
Airflow Direction Standard (Suck In)

Description

Specially designed for control panels and enclosures, the FPF range of fan filter units offer:

Compact sizes and low external profile
Fast mounting thanks to plastic elastic hooks
Integrated sealing gaskets for dust and water protection

Standard Specifications of Fan Filter Units:

Mounting without screws in square openings, tolerance range of 1.5mm
Possible fixing with V-shaped head screws (not supplied)
Standard RAL 7035 colour
Washable filter media supplied
IP54 rated
CSA approved
Shielded ball bearing fans
Suitable for operation at 60Hz
3.05kg
Temperature Range -10 to +50

Dimensions of FPF15KGU230BE-120:

Standard Fan Filter Size: 250mm (w) x 250mm (h) x 113mm (d)

The high performance FPF15KGU230BE-120 fan filter unit is a great solution to climae control. This version is the standard airflow model. With mounting without screws in square openings, its compact side mount and low profile are easily installed to the unit due to its click fit mounting system featuring plastic hooks. The fan filter units plate thickness lies between 1.5mm and 2.2mm and the plastic parts are in ABS and PC alloy. The fan filter units permanent sealing gasket in polyurethane foam provides the unit with IP54 protection from dust and water ingress. The filter media provided with the FPF15KGU230BE-120 is G3 filter media in thermo-linked progressive structure synthetic fiber according to EN779. G4 filter media is also available on request. Our filter medias can be cleaned, up to 10 times by washing, drying and lightly beating. The FPF15KGU230BE-120 can is suitable for operation up to 50/60Hz with an airflow of up to 360/400 m3/h. It meets CE and CSA approvals and has a working temperature of -10 to +55. It comes in colour RAL 7035 but it is available in other  colours on request and IP55 protection is available along with EMC, 3R, and Type1 on request.

Dimension 250x250x113mm
Rated Voltage 230Va.c
Rated Power (50/60Hz) 67/87
Max Air Flow (m3/h) 360/400
Static Pressure (50/60Hz) 160/180
Noise (50/60Hz) (dB(A)) 63.3/68.1
Bearing Type Ball



View the datasheet



We recommend using FPF15 filter fans alongside the FPF15KUG-100 air inlet/exhaust to allow the air to move freely through the enclosure.
