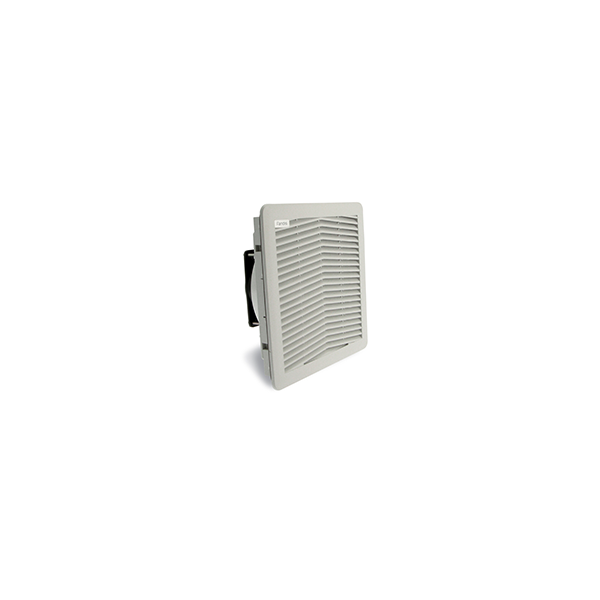

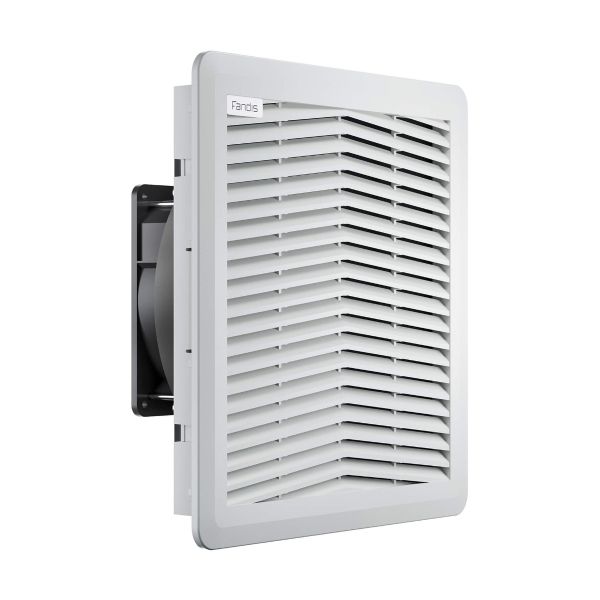

FPF15KPRD48BR-110 Fandis Filter Fan Unit 48V DC 120m³/h Reverse Airflow. Fits Cut Out 223x223mm. RAL 7035

Name: FPF15KPRD48BR-110 Fandis Filter Fan Unit 48V DC 120m³/h Reverse Airflow. Fits Cut Out 223x223mm. RAL 7035
SKU: FPF15KPRD48BR-110
Price: 90.87 GBP
Availability: InStock

SKU

FPF15KPRD48BR-110

Buy 20 for £86.33 each and save 5%

£90.87

Quantity

In Stock

View Downloads

SKU	FPF15KPRD48BR-110
Manufacturer	FANDISEU
Rated Voltage	48V.d.c.
Cut Out Size	223x223mm
EMC Shielded	No
Airflow Range (50Hz)	100 to 250m³/h
Max Air Flow (50Hz)	120(m³/h)
Airflow Direction	Reverse (Blow Out)

Description

Fandis FPF filter fan units are specially designed for electronic cooling inside control panels and enclosures. The Fandis FPF range offers:

Compact sizes and low external profile
Fast mounting thanks to plastic elastic hooks
Integrated sealing gaskets for dust and water protection

Standard Specifications of FPF Filter Fan Units:

Mounting without screws in square openings, tolerance range of 1.5mm
Possible fixing with V-shaped head screws (not supplied)
Standard RAL 7035 colour
Washable filter media supplied
IP54 rated
CSA approved
Shielded ball bearing fans
Suitable for operation at 60Hz
3.05kg
Temperature Range -10 to +50

Dimensions of the FPF15KPRD48BR-110: 250mm (w) x 250mm (h) x 100mm (d)

We recommend using FPF15 filter fans alongside the FPF15KUG-100 air inlet/exhaust to allow the air to move freely through the enclosure.

Dimension	250x250x100mm
Rated Voltage	48Vd.c
Rated Power (W)	7.7
Max Air Flow (m3/h)	145
Static Pressure (Pa)	76
Noise (50/60Hz) (dB(A))	42.5
