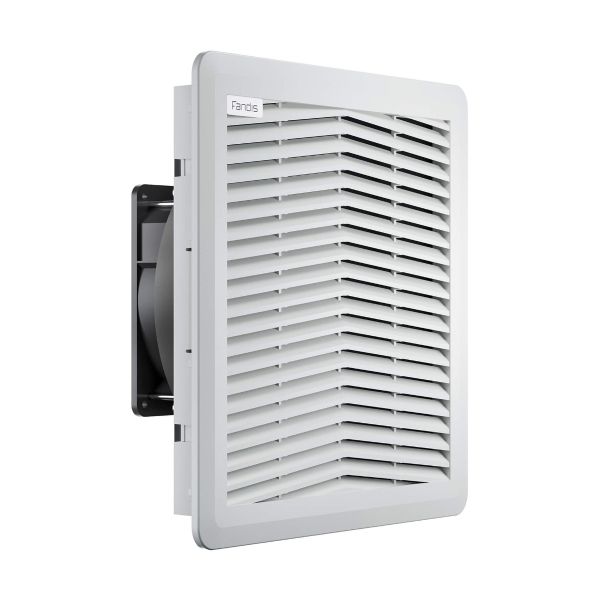

FPF15KPU230BE-110 Fandis Filter Fan Unit 230V AC 115m³/h Standard Airflow. Fits Cut Out 223x223mm. RAL 7035

FPF15KPU230BE-110 Fandis Filter Fan Unit 230V AC 115m³/h Standard Airflow. Fits Cut Out 223x223mm. RAL 7035

SKU
FPF15KPU230BE-110
Buy 10 for £75.84 each and save 5%
In Stock
View Downloads
SKU FPF15KPU230BE-110
Manufacturer FANDISEU
Voltage 230V.a.c
Cut Out Size 223x223mm
EMC Shielded No
Airflow Range (50Hz) 100 to 250m³/h
Max Air Flow (50Hz) 115(m³/h)
Airflow Direction Standard (Suck In)

Description

Specially designed for control panels and enclosures, the FPF range of filter fan units offer:

  • Compact sizes and low external profile
  • Fast mounting thanks to plastic elastic hooks
  • Integrated sealing gaskets for dust and water protection

Standard Specifications of Filter Fan Units:

  • Mounting without screws in square openings, tolerance range of 1.5mm
  • Possible fixing with V-shaped head screws (not supplied)
  • Standard RAL 7035 colour
  • Washable filter media supplied
  • IP54 rated
  • CSA approved
  • Shielded ball bearing fans
  • Suitable for operation at 60Hz
  • 1.39kg
  • Temperature Range -10 to +50

Dimensions of the FPF15KPU230BE-110:

Standard Filter Fan Size: 250mm (w) x 250mm (h) x 113mm (d)


The FPF15KU230BE-110 delivers an efficient solution to cabinet cooling. The Click fit mount comes as standard throughout the FPF range, this allows for fast mounting thanks to its plastic hooks. The filter fan unit is IP54 and has an integrated sealing gasket in polyurethane foam for dust and water protection. It is compact with a plate thickness between 1.5 and 2.2mm. FPF15KU230BE-110 can be fitted for a low external profile, or if more space inside the enclosure is needed an adaptor can be used giving the unit more internal space extending the filter fan units external profile. The filter media comes with G3 as standard but can be upgraded to G4 filter media upon request. The filter media in thermos-linked progressive structure synthetic fiber can be washed up to 10 times and reused. The FPF15KU230BE-110 model uses shielded ball bearings and has a standard airflow. The FPF15KU230BE-110 is suitable for operation at both 50 and 60 Hz giving the unit a max airflow of 57/61 m3/h and can work within the temperature range of -10 to +50 Celsius. The filter fan unit can also come in IP55, 3R, Type 1 and EMC versions on request.  The FPF15KU230BE-110 has UL approval according to UL 508 as well as CE and cURus.


Dimension 250x250x113mm
Rated Voltage 230Va.c
Rated Power (50/60Hz) 20/90
Max Air Flow (m3/h) 115/125
Static Pressure (50/60Hz) 51/59
Noise (50/60Hz) (dB(A)) 46.0/50.0
Bearing Type Ball



We recommend using FPF15 filter fans alongside the FPF15KUG-100 air inlet/exhaust to allow the air to move freely through the enclosure.
