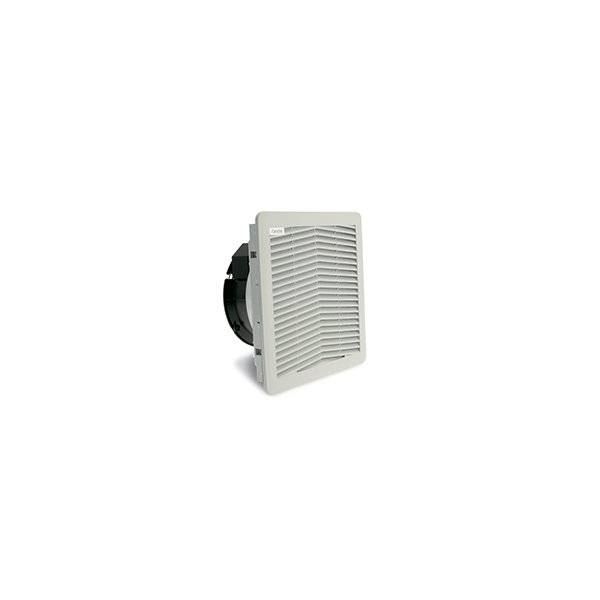

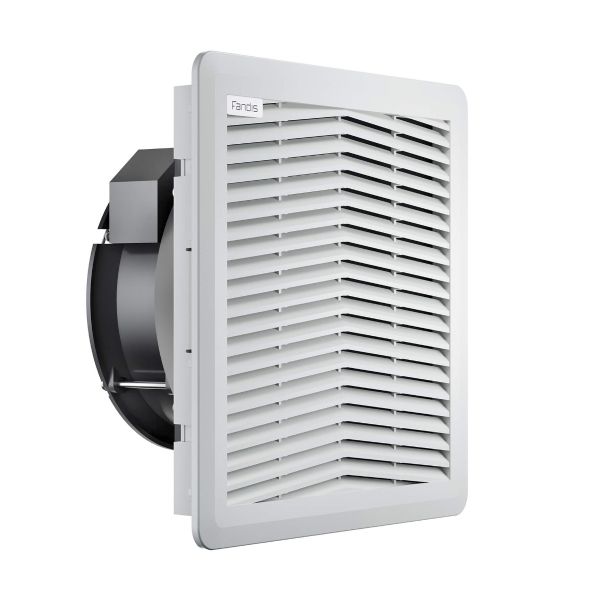

FPF15KUD24B-110 Fandis Filter Fan Unit 24V DC 250m³/h Standard Airflow. Fits Cut Out 223x223mm. RAL 7035

FPF15KUD24B-110 Fandis Filter Fan Unit 24V DC 250m³/h Standard Airflow. Fits Cut Out 223x223mm. RAL 7035

SKU
FPF15KUD24B-110
Buy 10 for £189.76 each and save 5%
In Stock
View Downloads
Manufacturer FANDISEU
Voltage 24Vd.c.
Cut Out Size 223x223mm
EMC Shielded No
Airflow Range (50Hz) 100 to 250m³/h
Max Air Flow (50Hz) 250(m³/h)
Airflow Direction Standard (Suck In)

Description

Specially designed for control panels and enclosures, the FPF range of filter fan units offer:

  • Compact sizes and low external profile
  • Fast mounting thanks to plastic elastic hooks
  • Integrated sealing gaskets for dust and water protection

Standard Specifications of Filter Fan Units:

  • Mounting type 12 by elastic hooks otherwise by four 4.8mm self threading screws
  • Possible fixing with V-shaped head screws (not supplied)
  • Standard RAL 7035 colour
  • Washable filter media supplied
  • IP54 rated
  • CSA approved
  • Shielded ball bearing fans
  • Suitable for operation at 60Hz
  • 1.60kg
  • Temperature Range -10 to +50

Dimensions of the FPF15KUD24B-110:

Standard Filter Fan Size: 250mm (w) x 250mm (h) x 113mm (d)


The FPF15KUD24B-110 delivers an efficient solution to thermal management. Click fit mount comes as standard in the FPF the range, which permits fast mounting due to its elastic hooks. The filter fan unit is IP54 and comes with integrated sealing gaskets in polyurethane foam for dust and water protection and is compact with a plate thickness between 1.5 and 2.2mm. FPF15KUD24B-110 can be fitted with a low external profile, or if more space inside the enclosure is needed an adaptor can be used giving the unit more space inside thus extending the filter fan units external profile. The filter media provides G3 as standard but can be upgraded to G4 on request. The filter media in thermos-linked progressive structure synthetic fiber can be washed several times and reused. The FPF15KUD24B-110 model uses shielded ball bearings and has a standard airflow. The FPF15KUD24B-110is suitable for operation at 50Hz giving the unit a max airflow of 250 m3/h and can work within the temperature range of -10 to +50 Celsius. The filter fan unit can also come in IP55, 3R, Type 1 and EMC versions on request.  The FPF15KUD24B-110 has UL approval according to UL 508 as well as CE, cURus and CSA approved.


Dimension 250x250x113mm
Rated Voltage 24Vd.c
Rated Power (50/60Hz) 23
Max Air Flow (m3/h) 250
Static Pressure (50/60Hz) 65
Noise (50/60Hz) (dB(A)) 64.0
Bearing Type Ball



We recommend using FPF15 filter fans alongside the FPF15KUG-100 air inlet/exhaust to allow the air to move freely through the enclosure.
