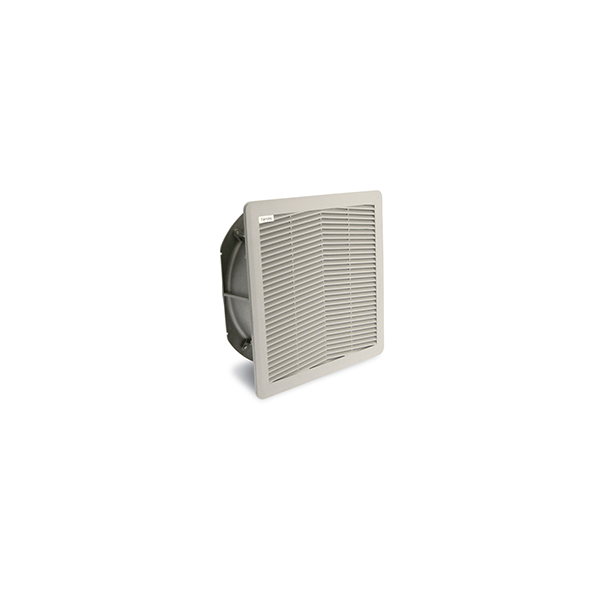

FPF20KGU115BER-120 Fandis Filter Fan Unit 115V AC 660m³/h Reverse Airflow. Fits Cut Out 291x291mm. RAL 7035

FPF20KGU115BER-120 Fandis Filter Fan Unit 115V AC 660m³/h Reverse Airflow. Fits Cut Out 291x291mm. RAL 7035

SKU
FPF20KGU115BER-120
Buy 4 for £230.83 each and save 5%
Lead time variable - contact us on 01782 349 430
View Downloads
SKU FPF20KGU115BER-120
Lead Times variable - contact us on 01782 349 430
Manufacturer FANDISEU
Voltage 115V.a.c
Cut Out Size 291x291mm
EMC Shielded No
Airflow Range (50Hz) >501m³/h
Max Air Flow (50Hz) 660(m³/h)
Airflow Direction Reverse (Blow Out)

Description

Specially designed for control panels and enclosures, the FPF range of filter fan units offer:

  • Compact sizes and low external profile
  • Fast mounting thanks to plastic elastic hooks
  • Integrated sealing gaskets for dust and water protection

Standard Specifications of Filter Fan Units:

  • Mounting without screws in square openings, tolerance range of 1.5mm
  • Possible fixing with V-shaped head screws (not supplied)
  • Standard RAL 7035 colour
  • Washable filter media supplied
  • IP54 rated
  • CSA approved
  • Shielded ball bearing fans
  • Suitable for operation at 60Hz
  • 4.00kg
  • Temperature Range -10 to +55

Dimensions of FPF20KGU115BER-120:

Standard Filter Size: 325mm (w) x 325mm (h) x 161mm (d)

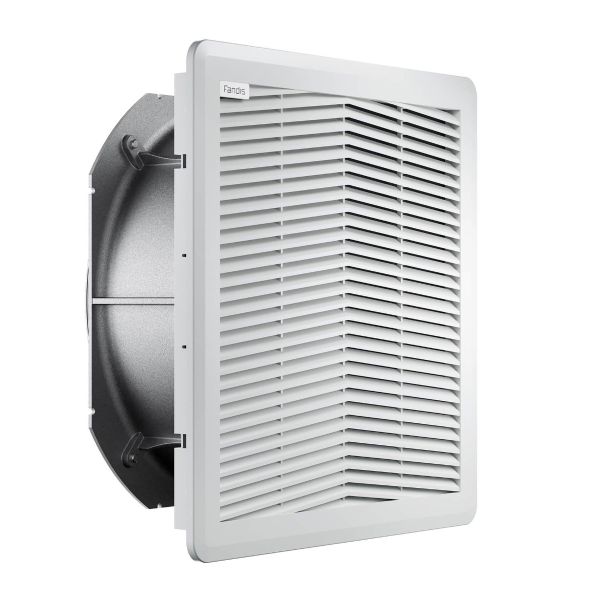

The FPF20KGU115BER-120 is a high performance filter fan unit that offers an efficient solution to thermal management. Its Click fit mounting is standard throughout the range, which allows for fast installation thanks to its elastic hooks. The filter fan unit is IP54 and has integrated sealing gaskets in polyurethane foam for dust and water protection , IP55 is also available. The FPF20KGU115BER-120 can be installed with a low external profile, or if more internal space is needed in the enclosure an adaptor can be used giving the unit more internal space extending the filter fan units external profile. It is compact with a plate thickness between 1.5 and 2.2mm The filter media provided is G3 as standard but can be changed to G4 rated upon request. The filter media in thermos-linked progressive structure synthetic fiber can be washed up to 10 times then reused. The FPF20KGU115BER-120 model uses shielded ball bearings and is suitable for operation at both 50 and 60 Hz giving the unit a max airflow of 660/745 m3/h and can work within the temperature range of -10 to +50 Celsius. The filter fan unit  is also available in 3R, Type 1 and EMC versions on request.  It has has UL approval according to UL 508 as well as CE. This is the reverse airflow version of this model.


Dimension 325x325x161mm
Rated Voltage 115Va.c
Rated Power (50/60Hz) 107/143
Max Air Flow (m3/h) 660/745
Static Pressure (50/60Hz) 220/22
Noise (50/60Hz) (dB(A)) 74.7/78.9
Bearing Type Ball



We recommend using FPF20 filter fans alongside the FPF20KUG-100 air inlet/exhaust to allow the air to move freely through the enclosure.
