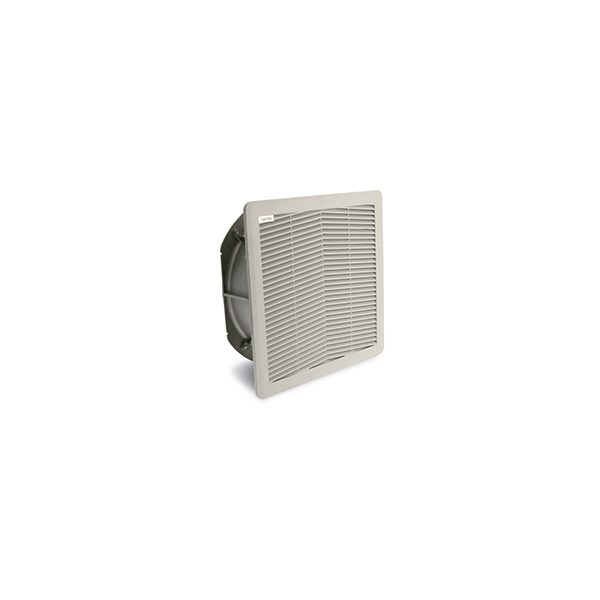

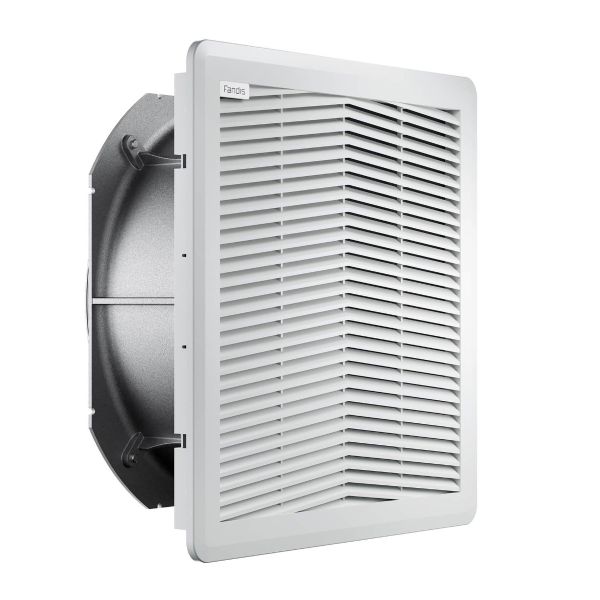

FPF20KGU230BE-120 Fandis Filter Fan Unit 230V AC 660m³/h Standard Airflow. Fits Cut Out 291x291mm. RAL 7035

Fandis FPF filter fan units are engineered to provide efficient electronic cooling for control panels and electrical enclosures. The FPF range is designed for reliable performance and easy installation, featuring:

• Compact dimensions with a low profile external design
• Quick and simple mounting using plastic elastic hooks
• Integrated sealing gaskets for enhanced dust and water protection

Standard Specifications of FPF Filter Fan Units:

• Mounting without screws in square openings, tolerance range of 1.5mm
• Possible fixing with V-shaped head screws (not supplied)
• Standard RAL 7035 colour
• Washable filter media supplied
• IP54 rated
• CSA approved
• Shielded ball bearing fans
• Suitable for operation at 60Hz
• 4.00kg
• Temperature Range -10 to +55

Dimensions of the FPF20KGU230BE-120: 325mm (w) x 325mm (h) x 161mm (d)

The FPF20KGU230BE-120 is a high performance filter fan unit that offers an efficient solution to thermal management.This is the standard airflow version of this model. The FPF20KGU230BE-120 has click fit mounting which is standard throughout the range. This allows fast and easy installation thanks to its elastic hooks. The filter fan unit has an IP54 rating and has integrated sealing gaskets in polyurethane foam for dust and water protection , IP55 is also available on request.

The FPF20KGU230BE-120 can be installed with a low external profile, or if more internal space is needed in the enclosure an adaptor can be used giving the unit more internal space by extending the filter fan units external profile. It is compact in its design with a plate thickness of between 1.5 and 2.2mm. The filter media provided is G3 but can be upgraded to G4 rated upon request. The filter media in thermos-linked progressive structure synthetic fiber can be washed up to 10 times then reused. The FPF20KGU230BE-120 model uses shielded ball bearings and is suitable for operation at both 50 and 60 Hz giving the unit a max airflow of 660/745 m3/h and can work within the temperature range of -10 to +50 Celsius. The filter fan unit  is also available in 3R, Type 1 and EMC versions on request and  has has UL approval according to UL 508 as well as CE.

We recommend using FPF20 filter fans alongside the FPF20KUG-100 air inlet/exhaust to allow the air to move freely through the enclosure.
