Specially designed for control panels and enclosures, the FPF range of filter fan units offer:

• Compact sizes and low external profile
• Fast mounting thanks to plastic elastic hooks
• Integrated sealing gaskets for dust and water protection

Standard Specifications of Filter Fan Units:

• Mounting without screws in square openings, tolerance range of 1.5mm
• Possible fixing with V-shaped head screws (not supplied)
• Standard RAL 7035 colour
• Washable filter media supplied
• IP54 rated
• CSA approved
• Shielded ball bearing fans
• Suitable for operation at 60Hz
• 3.62kg
• Temperature Range -10 to +55

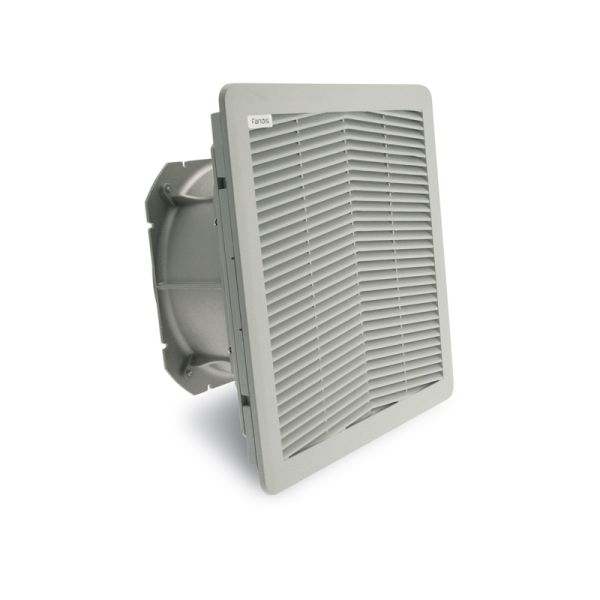

Dimensions of the FPF20KU115BE-120:

Standard Filter Fan Size: 325mm (w) x 325mm (h) x 161mm (d)

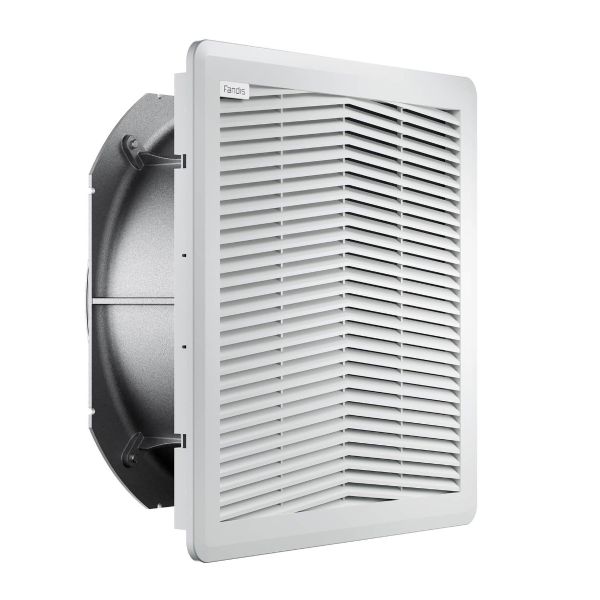

This is a high performance filter fan unit that offers an efficient solution to cabinet cooling. FPF20KU115BE-120 is the standard airflow version of this model. The FPF20KU115BE-120 model uses shielded ball bearings and is suitable for operation at both 50 and 60 Hz giving the unit a max airflow of 520/580 m3/h and can work within the temperature range of -10 to +50 Celsius. The filter fan unit is Type 12 but is also available in Type 1, 3R and EMC versions on request. FPF20KU115BE-120 has UL approval according to UL 508 as well as CE.  The FPF20KU115BE-120 has a click fit mounting feature which is standard throughout the range. This allows fast and easy installation due to its elastic hooks. The filter fan unit has an IP54 rating thanks to its integrated sealing gaskets in polyurethane foam for dust and water protection , IP55 is also available on request. The FPF20KU115BE-120 can be installed with a flat external profile, or if more internal space is needed in the enclosure an adaptor can be used giving the unit more internal space by extending the fan filter units external profile. It is compact  with a plate thickness of between 1.5 and 2.2mm and all pastic parts are made from PC and ABS alloy. The filter media is G3 as standard but can be upgraded to G4 rated upon request. The filter media in thermos-linked progressive structure synthetic fiber can be washed up to 10 times and reused.

We recommend using FPF20 filter fans alongside the FPF20KUG-100 air inlet/exhaust to allow the air to move freely through the enclosure.
