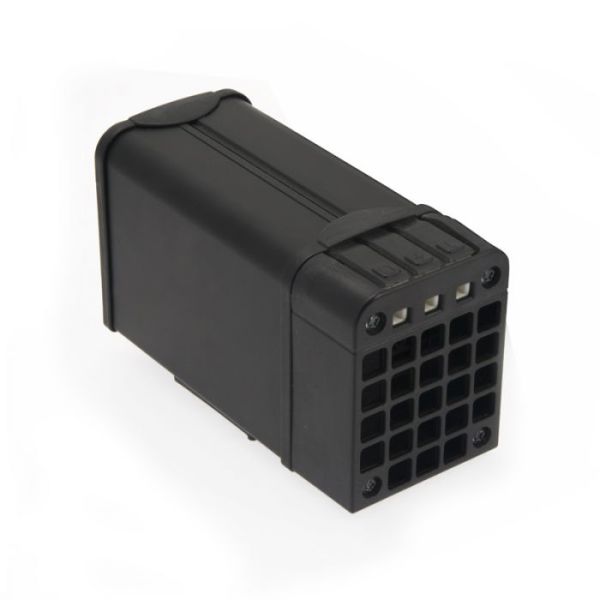

HTM100 100W Metal Housing Enclosure Heater 110-240V AC/DC Terminal Block IP20

The Fandis HTM100 is a compact DIN-rail-mounted enclosure heater designed to prevent condensation and maintain reliable operating temperatures within electrical cabinets and control panels. It incorporates a self-regulating PTC heating element and a black anodised extruded aluminium heat sink for efficient and safe heat distribution.

Key Features of the HTM100:

• Heating element: PTC thermistor, self-regulating
• Heat sink: black anodised extruded aluminium profile
• Method of mounting: snap-on fixing on RAIL 35mm EN 50022
• Heating Power: 100 W
• Rated Voltage: 110-240 V a.c./d.c.
• Operating Voltage: 99-264 V a.c.
• Frequency: 50/60 Hz
• Max Current: 2.6 A
• Appliance Class: I
• Casing Material: Black Anodised Aluminium
• Electrical Connection: Terminal Block
• Wires Section: 20-16 AWG
• Wires Section: 1-2.5 mm²
• Fixing System: DIN rail
• IP Protection Degree: IP20
• Operating Temperature: -30÷50 °C
• Storage Temperature: -40÷70 °C
• Dimensions (mm): 188x85x61.5
