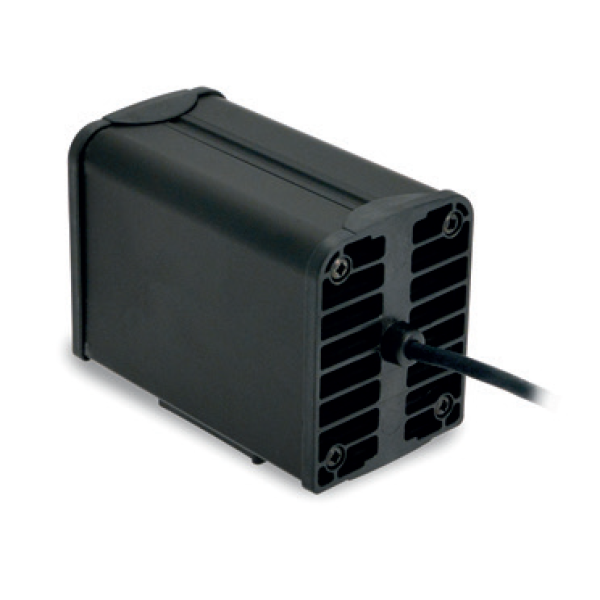

HWM045 45 Watt Enclosure Heater 110-240Vac/dc Cable 500mm IP20 - Metal

HWM045 45 Watt Enclosure Heater 110-240Vac/dc Cable 500mm IP20 - Metal

SKU
HWM045
Buy 18 for £32.82 each and save 5%
£34.55
6 left in Stock
ManufacturerFANDISEU
Heating Power (w)45
Wiring TypeCable
Heater TypeMetallic with Cable

Description

Key Features of HWM045:

  • Heating element: PTC thermistor, self regulating
  • Heat sink: black anodised extruded aluminium profile
  • Method of mounting: snap-on fixing on RAIL 35mm EN 50022
  • Rated temperature range: from -30°C to +50°C
  • Storage temp. range from -40°C to +70°C
  • Protection degree by heaters: IP20
  • Electrical connection: by 3 poles cable L-N-PE
  • External cable: 3 x 20 AWG cable 500 mm lenght with FEP insulation and external silicone rubber jacket
  • Dimensions (mm): 108x40x61.5
  • Appliance class: class l
  • Rated voltage range: 110-240 V a.c./d.c.
  • Rated frequency: 50/60 Hz
  • Max voltage: 265 V a.c./d.c.
  • Applicable standards: EN 60335-1, UL508, CSA C22.2 No.14-13
  • Approvals: CE; cURus certified till max 50°C

The formation of condensation is one of the biggest dangers for electrical enclosures and cabinets. Provided that they are working under load, their own heat prevents the condensing of fluids. If the process is switched off, the electronics cool down. This is precisely where the function of our control cabinet heaters begins to protect.

Our heaters are used in combination with an enclosure thermostat (Normally Closed) or cabinet hygrostat, predominantly for the avoidance of excessively low temperatures or excessively high humidity in the control cabinet and help to avoid the formation of corrosion.



View the datasheet



Shop our range of normally closed thermostats, to detect when to turn on a heater within the enclosure, available for next working day delivery.
