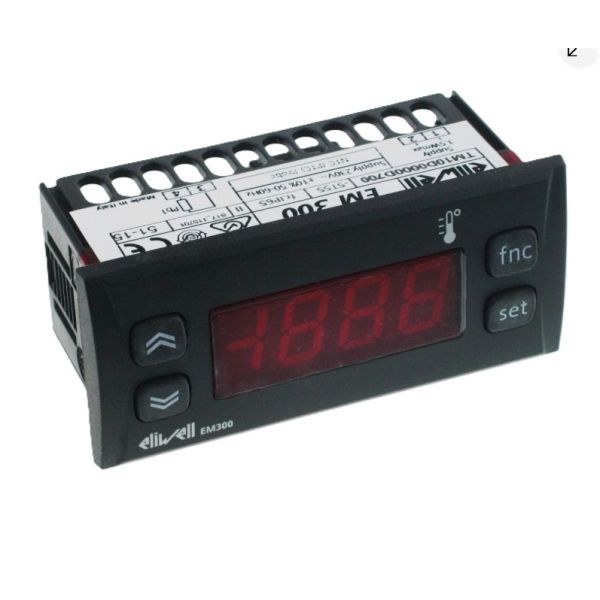

TM10D0000D700 Eliwell EM300 Digital Temperature Reader

The Eliwell TM10C0000D700 EM300 is a panel-mounted digital temperature indicator, compatible with PTC or NTC probes, for use in commercial and industrial refrigeration applications.

Technical Specifications & Features:

• Mounting: Panel mount with mounting hole 71x29mm (+0,2/-0,1 mm)
• Usage Temperature: -5...55°C
• Storage Temperature: -30...85°C
• Humidity: RH (non-condensing)
• Material: PC+ABS UL94 V-0 plastic casing with polycarbonate visor
• Power Supply: 230VAC
• Display field: probe NTC: -50,0...110,0° C | probe PTC: -55,0...140,0°C
• Display: decimal point selectable * 3 digits and a half + sign
• Analog inputs: 1 PTC or NTC*
• Field measurement: -55 to 140°C
• Accuracy: better than 0.5% of bottom scale + 1 digit
• Resolution 1 or 0.1°C
• Consumption model 230Va: 1.8 W max
• Power 230Va ±10% 50/60Hz
• Dimensions 74 x 32 x 30 mm
• Connectivity: Port TTL for connection to Copy Card and Televis System (only the model LX. Need Bus Adapter 350)
