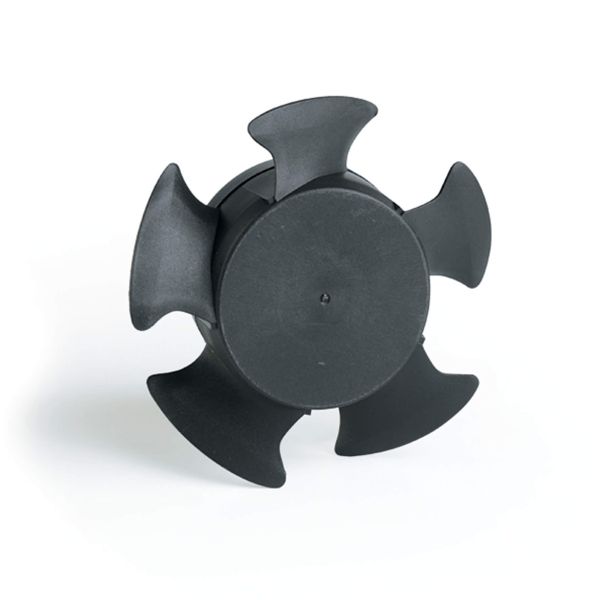

A12W23HWBW00 Replacement Impeller 113.5x113.5x38mm 182m³/h 20W 230V Ball Bearing

A12W23HWBW00 Replacement Impeller 113.5x113.5x38mm 182m³/h 20W 230V Ball Bearing

SKU
A12W23HWBW00
Buy 40 for £26.06 each and save 5%
In Stock
View Downloads
SKU A12W23HWBW00
Manufacturer FANDISEU
Max Air Flow (50Hz) 182(m³/h)
Airflow Range (50Hz) 100 to 250m³/h
Bearing Type Ball Bearing
Voltage 230V.a.c

Description

Replacement impeller for the A12W23HWBW00 Axial fan. Our range of compact axial fans are specially designed for control panels and enclosures and offer:

  • Compact sizes

  • Ball & Sleeve Bearing options on many lines

  • Dust and water protection

  • A wide selection of airflows



    Standard Specifications of A12W23HWBW00 AC Axial Compact Fan:



  • Approvals CE; cURus PERFORMANCE
  • Max Airflow: 151/182 m³/h
  • Max Static Pressure: 65/80 Pa
  • RPM 2550/2900 RPM
  • Rated Voltage: 230 V a.c
  • Rated Current: 0.125/0.11 A
  • Rated Power: 20/19 W
  • Operating Voltage: 216-244 V a.c.
  • Frequency: 50/60 Hz
  • Appliance Class: I
  • Insulation Class: A
  • Motor Protection: Impedance Protected
  • Bearing: Ball Bearing
  • Casing Material: Die-Casting Aluminium
  • Airflow Direction: Air intake over brackets
  • Electrical Connection: Wires
  • Life Expectancy: 30000 h at 40 °C
  • Fan Noise 46/49 dB(A)
  • Cable Length: 300 mm
  • Fixing System: Screws
  • IP Protection Degree: IP20
  • Operating Temperature: -10÷70 °C
  • Storage Temperature: -40÷70 °C

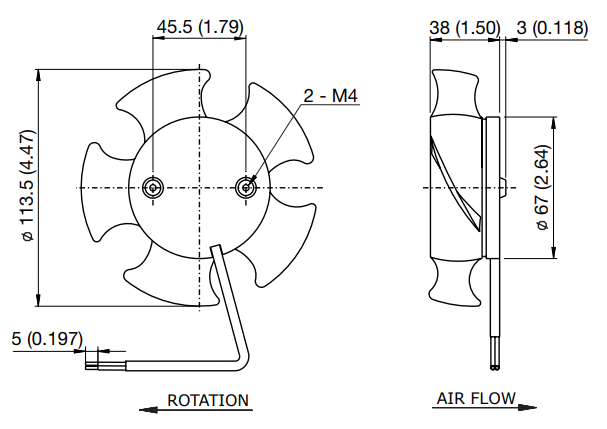

A12W23HWBW00 Impeller
