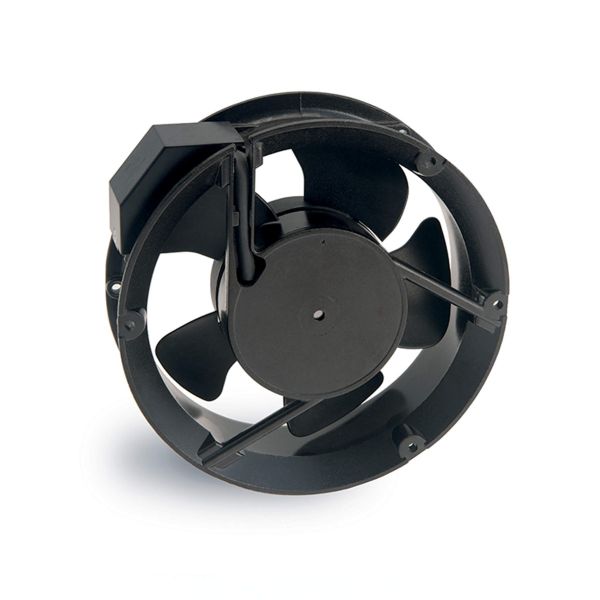

C18C23HTBF00 AC Axial Compact Fan 172x172x51mm 348m³/h 29w 230V Ball Bearing

C18C23HTBF00 AC Axial Compact Fan 172x172x51mm 348m³/h 29w 230V Ball Bearing

SKU
C18C23HTBF00
Buy 20 for £88.09 each and save 5%
In Stock
View Downloads
SKU C18C23HTBF00
Manufacturer FANDISEU
Axial Fan Dimensions 172x150x51mm
Max Air Flow (50Hz) 348(m³/h)
Airflow Range (50Hz) 250 to 500m³/h
Bearing Type Ball Bearing
Voltage 230V.a.c

Description

Specially designed for control panels and enclosures, the AC Axial Compact Fan range from Axair online offers:

  • Compact sizes
  • Ball & Sleeve Bearing options on many lines
  • Dust and water protection
  • A wide selection of airflows

Standard Specifications of C18C23HTBF00 AC Axial Compact Fan:

  • Casing Material: Die-casting aluminium painted black
  • Impeller Material: Black thermoplastic UL 94V-0
  • Protection degree: IP20, according to EN 60529 standard
  • Fixing system: by No 4 M4 screws
  • Motor protection: Impedance
  • Storage temperature: from -40°C to +70°C
  • Rated temperature range: from -10°C to +60°C Lifetime L10 at 40°C: 30,000 h
  • Electrical connection: bronze flat terminals (3x0.5 mm)
  • Weight: 0.82kg
  • Approvals: UL E223195; VDE 40009963



Dimension 172x172x51
Rated Voltage 230Va.c
Rated Power (50/60Hz) 29/29
Max Air Flow (m3/h) 348/384
Static Pressure (50/60Hz) 157/197
Rated Speed (50/60Hz) (RPM) 2850/3400
Noise (50/60Hz) (dB(A) 50.0/55.0
Bearing Type Ball
