DIF-PUR 6/6 EC Purifier Fan Filter Unit with G4 & H14 Filter

DIF-PUR 6/6 EC Purifier Fan Filter Unit with G4 & H14 Filter

SKU
AIRFIL12200
Buy 10 for £1,378.56 each and save 5%
tick Lead time variable - contact us on 01782 349 430
SKU AIRFIL12200
Lead Times variable - contact us on 01782 349 430

Description

The DIF-PUR diffuser is to be installed in false ceilings or in suspension, it has a double stage of high efficiency filtration that generates a flow of clean air. It is a product specially designed for spaces where sterility is vital, such as operating theatres or clean rooms. It is equipped with a sealing gasket to obtain absolute filtration of the air thanks to the HEPA filter it has.



Key Features:

  • Filtration horizontal cassette that creates a low velocity laminar flow purified air barrier, used in high demand applications such as operating rooms and clean rooms.

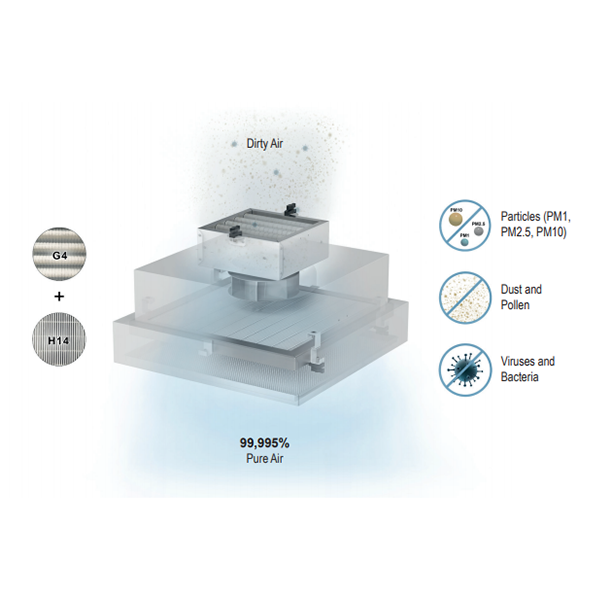

  • Laminar flow purification unit with high efficiency gasket with two filtration stages:
    • G4 (ZLM) pre-filter according to EN779 standard
    • H14 absolute filter type minipleat with efficiency of 99.995% according to standard EN1822 and sealed with polyurethane for filtration of 100% of the air. On request, it can be replaced by a ULPA U15 filter with an efficiency of 99.9995%.
  • 24/7 recirculation of the indoor air through the two filtration stages guarantees the purification of the air by eliminating particles and pollutants such as: dust, pollen, spores, bacteria, viruses and fine particles PM10, PM2.5 and PM1.
  • Perforated and enveloping diffuser of steel painted in RAL 9016 white. On request, other colours or materials such as AISI304 stainless steel.
  • Backward blade fan with high efficiency and very low consumption external rotor EC motor, electronically adjustable 0-100% via 0-10V.
  • Constant airflow controled by special regulation which mesurates air pressure to modify the fan working point and activate dirty filter alarm when it saturates.
  • Suitable for suspended installation or adaptable to false ceilings in “T” system.

Dimensions (mm): 680x680x420

This product is currently available on back order, please contact us at sales@axair-fans.co.uk
